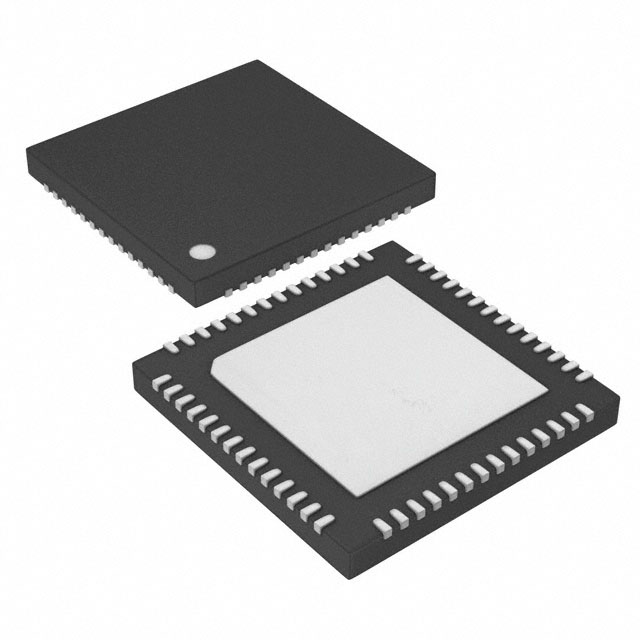

78M6631-IMR/F

Part Number
78M6631-IMR/F
Manufacturer Maxim Integrated / Analog Devices
Other Part Numbers
78M6631-IMR/F-ND
Description IC POWER MEAS/MON 3 PHASE 56TQFN
Detailed Description 3 Phase Meter IC 56-TQFN (7x7)

Product Attributes

Category
Manufacturer Maxim Integrated / Analog Devices
Series
Teridian™
Packaging
Tape & Reel (TR)
Part Status Discontinued
Package / Case 56-WFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Current - Supply 9.1mA
Measurement Error 0.5%
Input Impedance 40kOhm ~ 90kOhm
Voltage - I/O High 2V
Voltage - I/O Low 0.8V
Meter Type 3 Phase
Supplier Device Package 56-TQFN (7x7)
Voltage - Supply 3 V ~ 3.6 V

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Discontinued

This product is no longer for sale.
