770W-X2/13

770W-X2/13

Part Number	770W-X2/13
Manufacturer	Qualtek Electronics Corp.
Other Part Numbers	Q840-ND Q840 2266-770W-X2/13 770W-X2/13-ND
Description	PWR ENT RCPT IEC320-C8 PNL SLDR

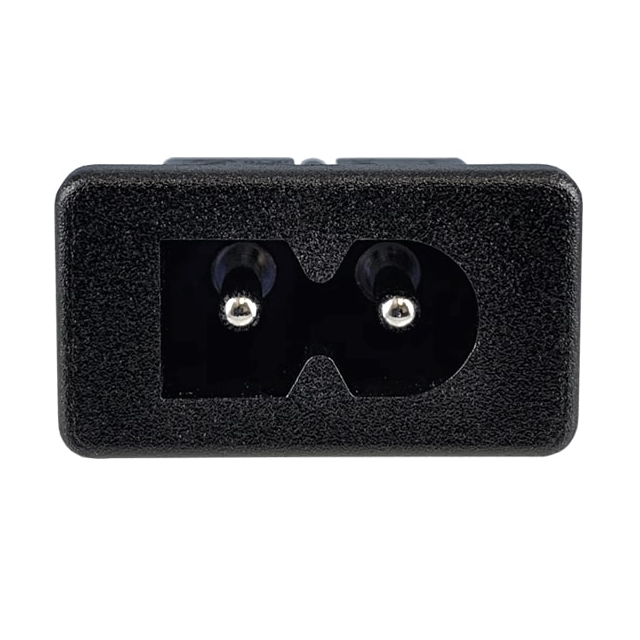

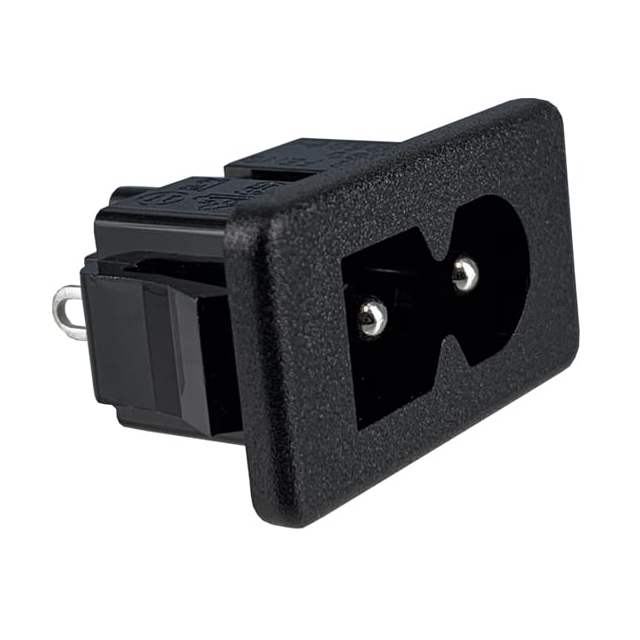

Detailed Description	Power Entry Connector Receptacle, Male Pins IEC 320-C8 Panel Mount, Snap-In
Manufacturer Standard Lead Time	45 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects AC Power Connectors Power Entry Modules (PEM)
Manufacturer		Qualtek Electronics Corp.
Series		770W
Packaging		Bulk
Part Status		Active
Filter Type		Unfiltered - Commercial
Connector Type		Receptacle, Male Pins
Mounting Type		Panel Mount, Snap-In
Number of Positions		2

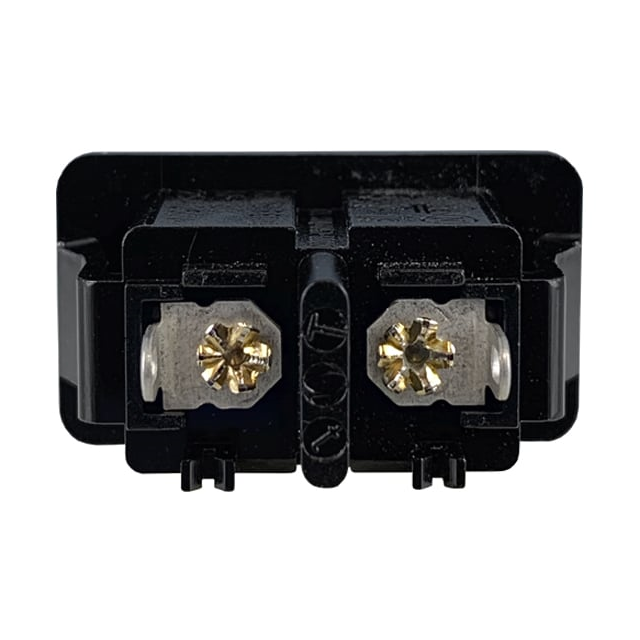

Termination		Solder Eyelet
Approval Agency		CSA, UL, VDE
Panel Thickness		0.024" ~ 0.079" (0.60mm ~ 2.00mm)
Panel Cutout Dimensions		Rectangular - 24.50mm x 12.50mm
Connector Style		IEC 320-C8
Accomodates a Fuse		No
Current Rating - Appliance Inlet		2.5A
Voltage Rating - Appliance Inlet		250VAC

Documents & Media

RESOURCE TYPE		LINK
Datasheets		770W-X2/13
Datasheets		IEC Connector Designations
Datasheets		Qualtek CA Prop 65 Statement
Datasheets		Qualtek RoHS Cert
Datasheets		Qualtek TSCA Statement

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 741

Can ship immediately.
