770-713 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	770-713
Manufacturer	WAGO
Other Part Numbers	2946-770-713-ND 2946-770-713 770713 0770-0713 51110413 0770713 2943-770-713-ND 2943-770-713 0770-713

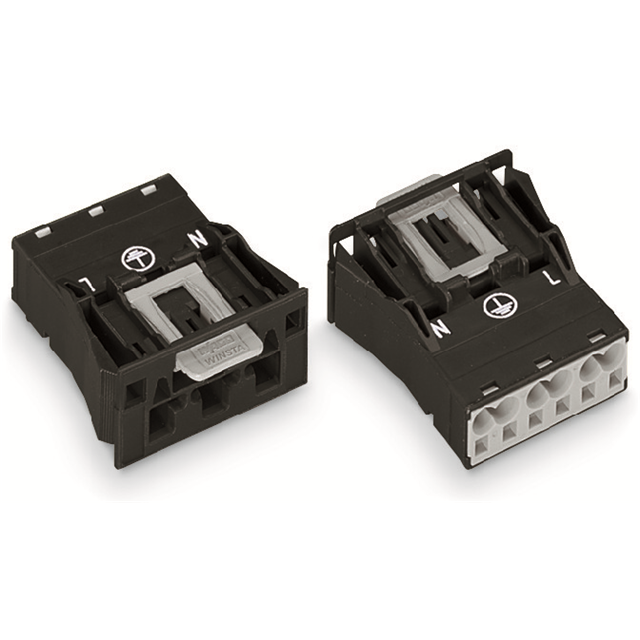

Description	SNAP-IN PLUG BLACK
Detailed Description	3 Position Terminal Block Plug, Male Pins 0.394" (10.00mm) 180° Panel Mount, Snap-In
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		WINSTA® MIDI
Packaging		Box
Part Status		Active
Features		Lever Actuated
Color		Black
Mounting Type		Panel Mount, Snap-In
Number of Positions		3
Pitch		0.394" (10.00mm)
Type		Plug, Male Pins
Operating Temperature		-35°C ~ 85°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		25A
Number of Levels		1
Wire Gauge or Range - AWG		12-20 AWG
Wire Gauge or Range - mm²		0.5-4mm²
Positions Per Level		3
Plug Wire Entry		180°
Housing Material		Polyamide (PA66), Nylon 6/6
Wire Strip Length		9mm
Insulation Height		0.689" (17.50mm)
Current - UL		23 A
Voltage - IEC		250 V
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		770-713

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
