76382-306LF _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	76382-306LF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-1282-ND 76382306LF 3937-76382-306LF 609-1282 2266-76382-306LF

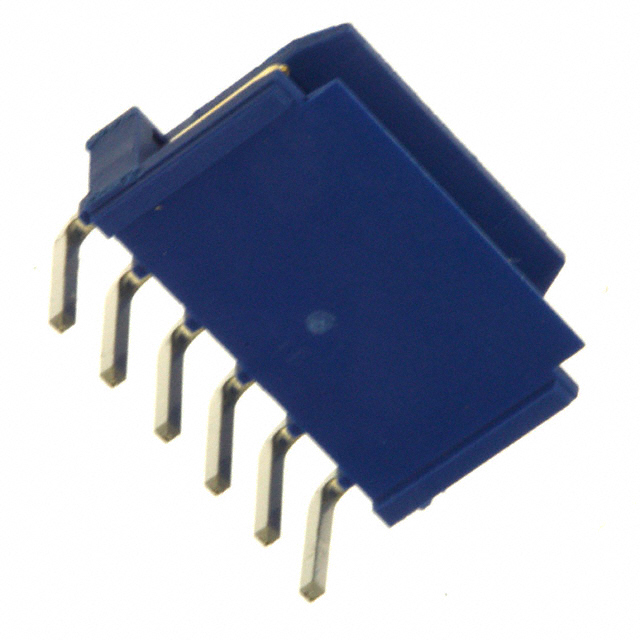

Description	CONN HEADER R/A 6POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		Dubox™
Packaging		Bulk
Part Status		Active
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		6
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Blue
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold, GXT™
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		78.7µin (2.00µm)
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.209" (5.30mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyester, Glass Filled
Contact Length - Mating		0.197" (5.00mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
