760800202

Part Number
760800202
Manufacturer Würth Elektronik Midcom
Other Part Numbers
732-760800202-ND
732-760800202
Description FIXED IND 389UH 11.5A 0.05OHM

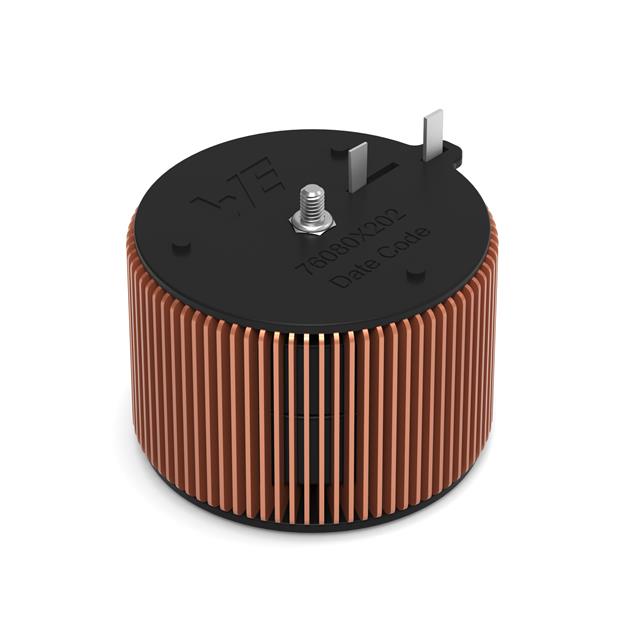

Detailed Description 389 µH Unshielded Toroidal Inductor 11.5 A 50mOhm Max Nonstandard Flat Wire
Manufacturer Standard Lead Time 24 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Würth Elektronik Midcom
Series
WE-TORPFC
Packaging
Tray
Part Status Active
Tolerance ±20%
Features Flat Wire
Package / Case Nonstandard
Size / Dimension 2.835" Dia (72.00mm)
Mounting Type Bolt Mount
Shielding Unshielded
Type Toroidal
Operating Temperature -40°C ~ 155°C
DC Resistance (DCR) 50mOhm Max
Ratings AEC-Q200
Current - Saturation (Isat) 19A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 1.772" (45.00mm)
Inductance 389 µH
Current Rating (Amps) 11.5 A

Documents & Media

RESOURCE TYPE LINK
Datasheets 760800202
Datasheets RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.32.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 27

Can ship immediately.
