750813144

750813144

Part Number

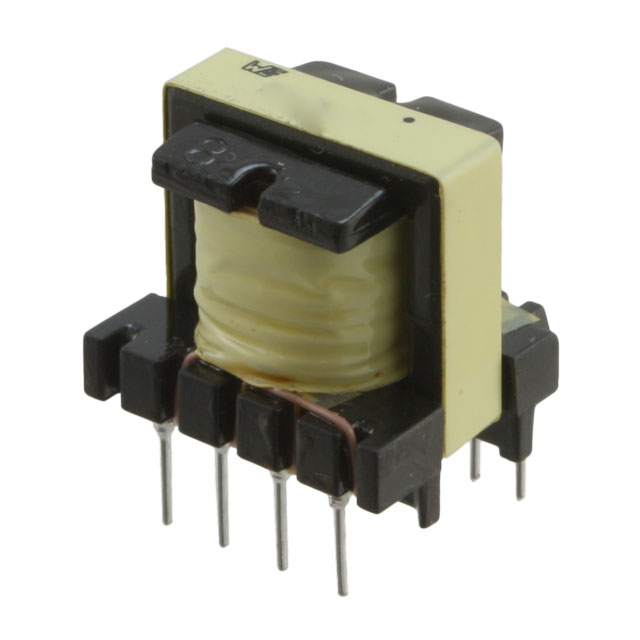

750813144
Manufacturer Würth Elektronik Midcom
Other Part Numbers
732-2959-ND
732-2959
Description XFMR LED DR AC/DC CONV 600UH TH
Detailed Description LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 4500Vrms Isolation 100kHz Through Hole
Manufacturer Standard Lead Time 19 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Würth Elektronik Midcom
Series
WE-FB, MID-OLLT
Packaging
Tray
Part Status Active
Size / Dimension 0.728" L x 0.650" W (18.50mm x 16.50mm)
Mounting Type Through Hole
Frequency 100kHz
Type For AC/DC Converters
Operating Temperature -40°C ~ 125°C
Applications LED Drivers, AC/DC SMPS
Voltage - Isolation 4500Vrms
Intended Chipset LT3799, LT4180
Voltage - Primary 85 ~ 265V
Voltage - Auxiliary 20V @ 10mA
Footprint 0.728" L x 0.650" W (18.50mm x 16.50mm)
Chipset Manufacturer Linear Technology
Height - Seated (Max) 0.740" (18.80mm)
Inductance @ Frequency 600µH @ 10kHz

Documents & Media

RESOURCE TYPE LINK
Datasheets 750813144
Datasheets RoHS Cert
Datasheets Mult Devs Product Improvement 21/Oct/2022
Datasheets Mult Devices Label 22/Dec/2021
Datasheets 750813144 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 47

Can ship immediately.
