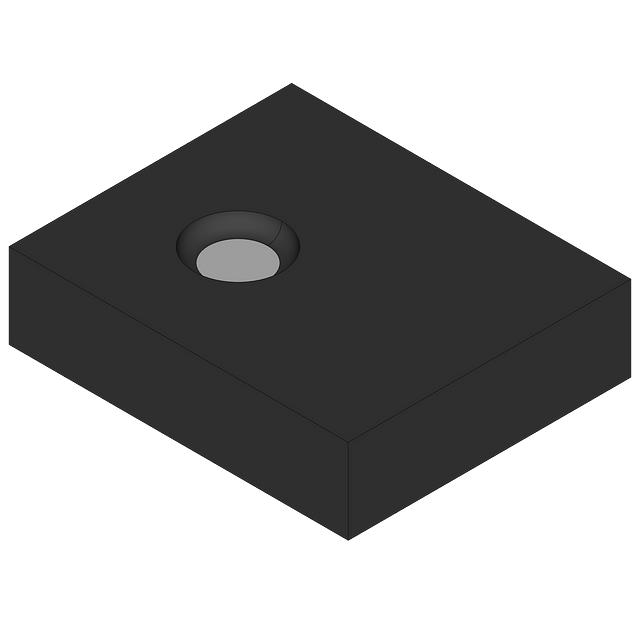

74LVC2G08GN,115

74LVC2G08GN,115

Part Number	74LVC2G08GN,115
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-74LVC2G08GN,115-954-ND 2156-74LVC2G08GN,115-954
Description	IC GATE AND 2CH 2-INP 8XSON
Detailed Description	AND Gate IC 2 Channel 8-XSON (1.2x1)

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		NXP Semiconductors
Series		74LVC
Packaging		Bulk
Part Status		Active
Package / Case		8-XFDFN
Mounting Type		Surface Mount
Logic Type		AND Gate
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		1.65V ~ 5.5V
Current - Output High, Low		32mA, 32mA
Number of Inputs		2
Supplier Device Package		8-XSON (1.2x1)
Input Logic Level - High		1.7V ~ 2V
Input Logic Level - Low		0.7V ~ 0.8V
Max Propagation Delay @ V, Max CL		4.8ns @ 5V, 50pF
Number of Circuits		2
Current - Quiescent (Max)		4 µA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
