74HCT377PW,118 _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	74HCT377PW,118
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-74HCT377PW,118-954-ND 2156-74HCT377PW,118-954
Description	IC FF D-TYPE SNGL 8BIT 20TSSOP
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		NXP Semiconductors
Series		74HCT
Packaging		Bulk
Part Status		Active

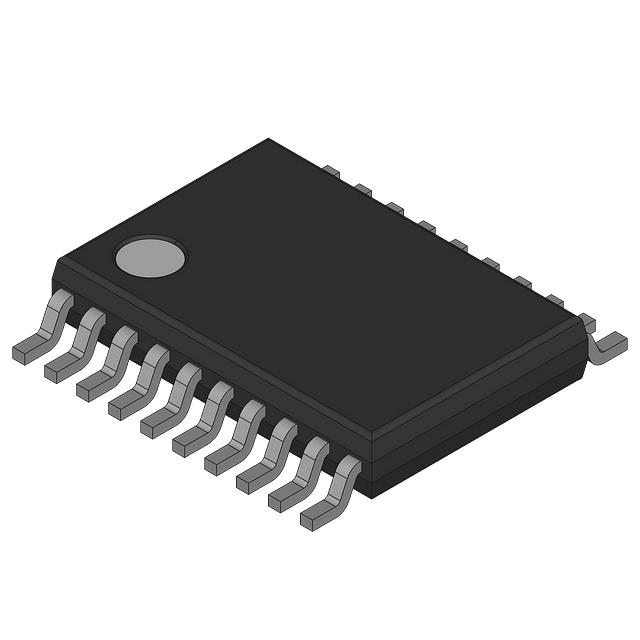

Package / Case		20-TSSOP (0.173", 4.40mm Width)
Output Type		Non-Inverted
Mounting Type		Surface Mount
Number of Elements		1
Function		Standard
Type		D-Type
Operating Temperature		-40°C ~ 125°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Current - Quiescent (Iq)		8 µA
Current - Output High, Low		4mA, 5.2mA
Trigger Type		Positive Edge
Clock Frequency		53 MHz
Input Capacitance		3.5 pF
Supplier Device Package		20-TSSOP
Max Propagation Delay @ V, Max CL		32ns @ 4.5V, 50pF
Number of Bits per Element		8

RESOURCE TYPE		LINK
Datasheets		74HCT377PW,118

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
