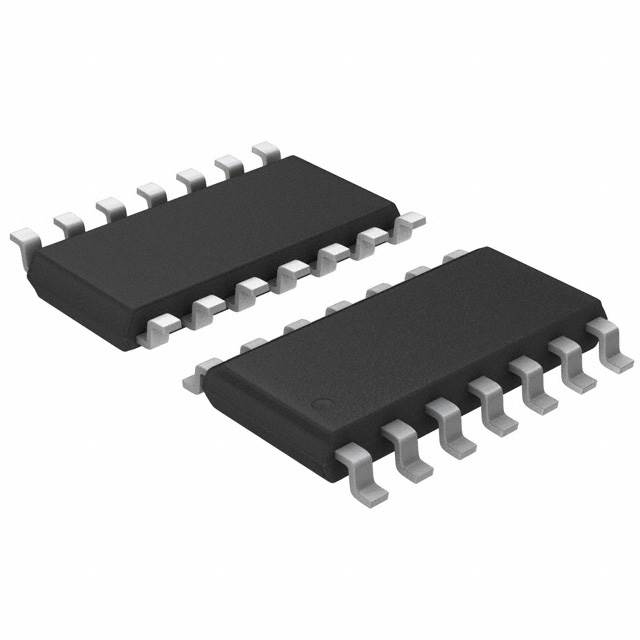

74HC21D

74HC21D

Part Number	74HC21D
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	74HC21DTR-ND 74HC21DCT-ND 74HC21DDKR-ND 74HC21DCT 74HC21D(BJ)DKR 74HC21D(BJ)DKR-ND 74HC21DTR 74HC21DDKR 74HC21D(BJ) 74HC21D(BJ)TR 74HC21D(BJ)TR-ND 74HC21D(BJ)CT 74HC21D(BJ)CT-ND
Description	IC GATE AND 2CH 4-INP 14SOIC
Detailed Description	AND Gate IC 2 Channel 14-SOIC

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series		74HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		14-SOIC (0.154", 3.90mm Width)
Mounting Type		Surface Mount
Logic Type		AND Gate
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2V ~ 6V
Current - Output High, Low		5.2mA, 5.2mA
Number of Inputs		4
Supplier Device Package		14-SOIC
Input Logic Level - High		1.5V ~ 4.2V
Input Logic Level - Low		0.5V ~ 1.8V
Max Propagation Delay @ V, Max CL		17ns @ 6V, 50pF
Number of Circuits		2
Current - Quiescent (Max)		1 µA

Documents & Media

RESOURCE TYPE		LINK
Datasheets		74HC21D

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 10467

Can ship immediately.
