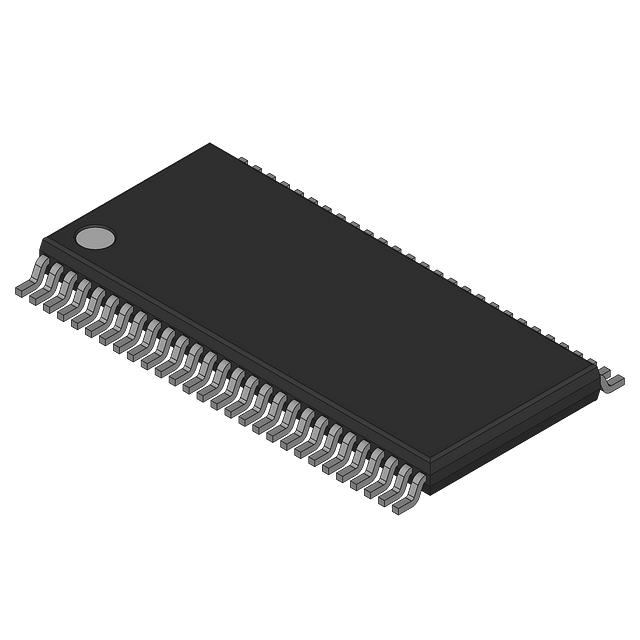

74ALVT16823DGG,118 _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	74ALVT16823DGG,118
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-74ALVT16823DGG118-ND NEXNXP74ALVT16823DGG,118 2156-74ALVT16823DGG118
Description	IC FF D-TYPE DUAL 9BIT 56TSSOP
Detailed Description	Flip Flop 2 Element D-Type 9 Bit Positive Edge 56-TFSOP (0.240", 6.10mm Width)

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		NXP Semiconductors
Series		74ALVT
Packaging		Bulk
Part Status		Active
Package / Case		56-TFSOP (0.240", 6.10mm Width)
Output Type		Tri-State, Non-Inverted
Mounting Type		Surface Mount
Number of Elements		2
Function		Master Reset
Type		D-Type
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		2.3V ~ 2.7V, 3V ~ 3.6V
Current - Quiescent (Iq)		100 µA
Current - Output High, Low		8mA, 24mA; 32mA, 64mA
Trigger Type		Positive Edge
Clock Frequency		250 MHz
Input Capacitance		3 pF
Supplier Device Package		56-TSSOP
Max Propagation Delay @ V, Max CL		3.1ns @ 3.3V, 50pF
Number of Bits per Element		9

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
