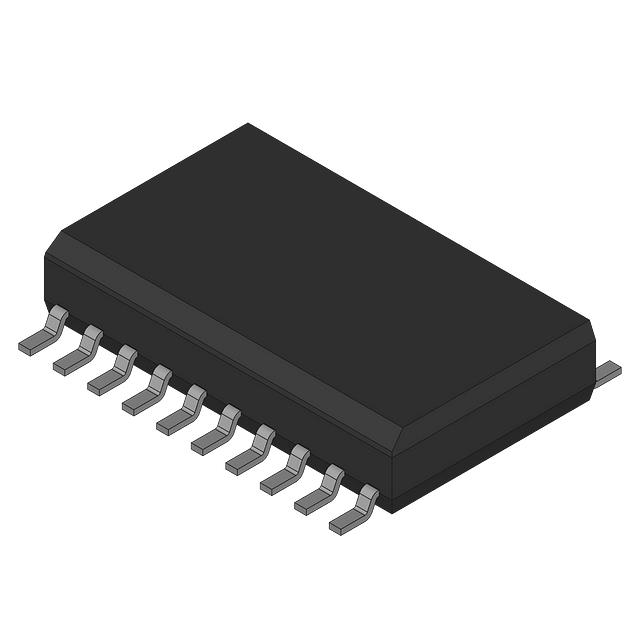

74AHCT244D,118

74AHCT244D,118

Part Number	74AHCT244D,118
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-74AHCT244D,118-954-ND 2156-74AHCT244D,118-954
Description	IC BUFFER NON-INVERT 5.5V 20SO
Detailed Description	Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SO

Product Attributes

Category		Integrated Circuits (ICs) Logic Buffers, Drivers, Receivers, Transceivers
Manufacturer		NXP Semiconductors
Series		74AHCT
Packaging		Bulk
Part Status		Active
Package / Case		20-SOIC (0.295", 7.50mm Width)
Output Type		3-State
Mounting Type		Surface Mount
Number of Elements		2
Logic Type		Buffer, Non-Inverting
Operating Temperature		-40°C ~ 125°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Number of Bits per Element		4
Current - Output High, Low		8mA, 8mA
Supplier Device Package		20-SO

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
