74AHC595S16-13

74AHC595S16-13

Part Number	74AHC595S16-13
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-74AHC595S16-13TR-ND 31-74AHC595S16-13CT-ND 31-74AHC595S16-13DKR-ND 31-74AHC595S16-13TR 31-74AHC595S16-13DKR 74AHC595S16-13DICT 74AHC595S16-13DITR 31-74AHC595S16-13CT 74AHC595S16-13DIDKR 74AHC595S16-13-ND
Description	AHC HIGH PIN COUNT SO-16
Detailed Description	Shift Shift Register 1 Element 8 Bit 16-SO
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Logic Shift Registers
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series		74AHC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

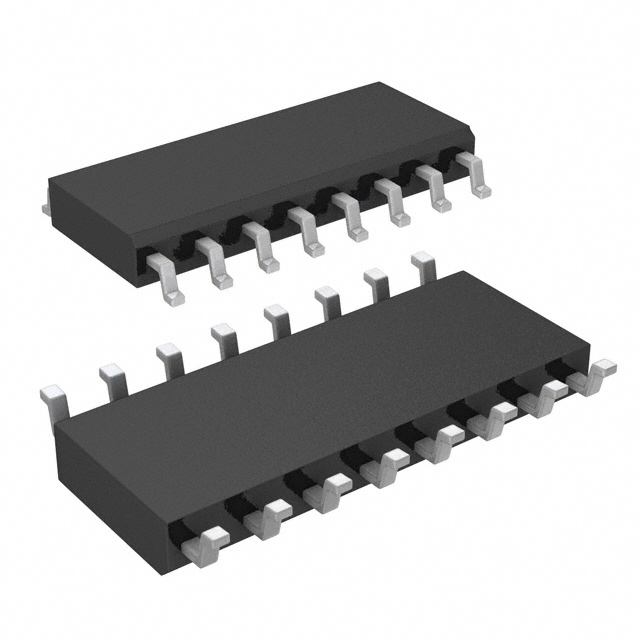

Package / Case		16-SOIC (0.154", 3.90mm Width)
Output Type		Tri-State
Mounting Type		Surface Mount
Number of Elements		1
Function		Serial to Parallel, Serial
Logic Type		Shift Register
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		2V ~ 5.5V
Supplier Device Package		16-SO
Number of Bits per Element		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		74AHC595S16-13
Datasheets		Diodes Environmental Compliance Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3580

Can ship immediately.
