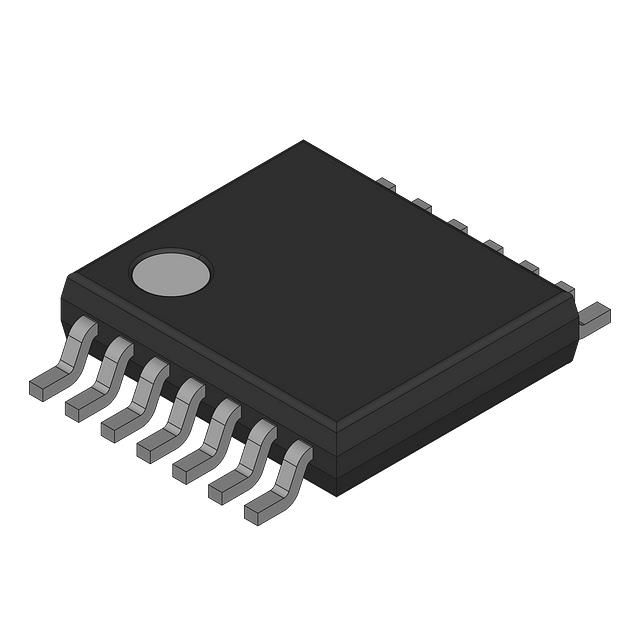

74AC32MTC

74AC32MTC

Part Number	74AC32MTC
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-74AC32MTC-ND 2156-74AC32MTC FAIFSC74AC32MTC
Description	IC GATE OR 4CH 2-INP 14TSSOP
Detailed Description	OR Gate IC 4 Channel 14-TSSOP

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Fairchild Semiconductor
Series		74AC
Packaging		Bulk
Part Status		Active
Package / Case		14-TSSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Logic Type		OR Gate
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2V ~ 6V
Current - Output High, Low		24mA, 24mA
Number of Inputs		2
Supplier Device Package		14-TSSOP
Input Logic Level - High		2.1V ~ 3.85V
Input Logic Level - Low		0.9V ~ 1.65V
Max Propagation Delay @ V, Max CL		7.5ns @ 5V, 50pF
Number of Circuits		4
Current - Quiescent (Max)		2 µA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
