7491195501

7491195501

Part Number
7491195501
Manufacturer Würth Elektronik Midcom
Other Part Numbers
732-6198-2-ND
732-6198-1-ND
732-6198-6-ND
732-6198-6
732-6198-2
732-6198-1

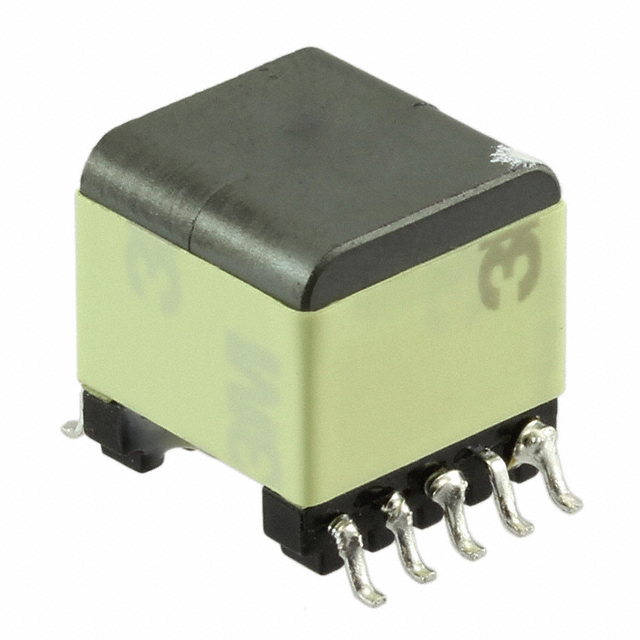

Description XFMR POE DC/DC CONV 21UH SMD
Detailed Description Power Over Ethernet (PoE) For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200 ~ 400kHz Surface Mount
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Würth Elektronik Midcom
Series
WE-PoEH
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Size / Dimension 0.551" L x 0.591" W (14.00mm x 15.00mm)
Mounting Type Surface Mount
Frequency 200 ~ 400kHz
Type For DC/DC Converters
Operating Temperature -40°C ~ 125°C
Applications Power Over Ethernet (PoE)
Voltage - Isolation 1500Vrms
Voltage - Primary 9 ~ 57V
Voltage - Auxiliary 10V
Footprint 0.551" L x 0.591" W (14.00mm x 18.10mm)
Height - Seated (Max) 0.571" (14.50mm)
Inductance @ Frequency 21µH @ 100kHz

Documents & Media

RESOURCE TYPE LINK
Datasheets 7491195501
Datasheets RoHS Cert
Datasheets 749119yyy Datasheet Update 01/Apr/2023
Datasheets Mult Devices Label 22/Dec/2021

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.2000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 59

Can ship immediately.
