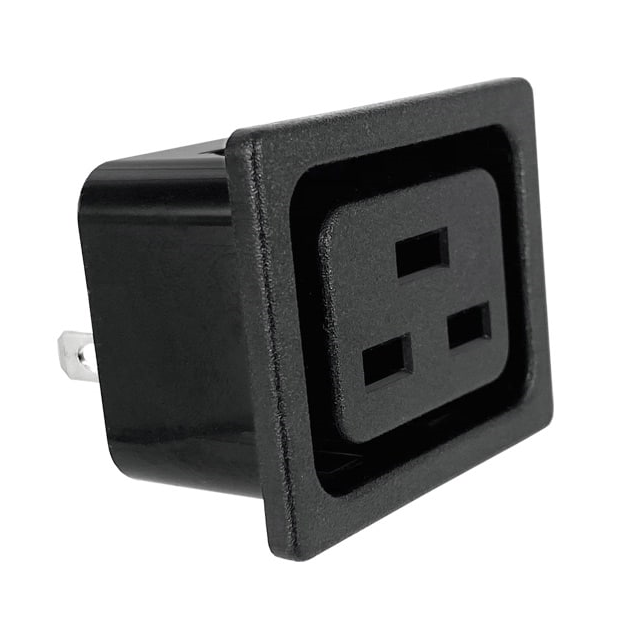

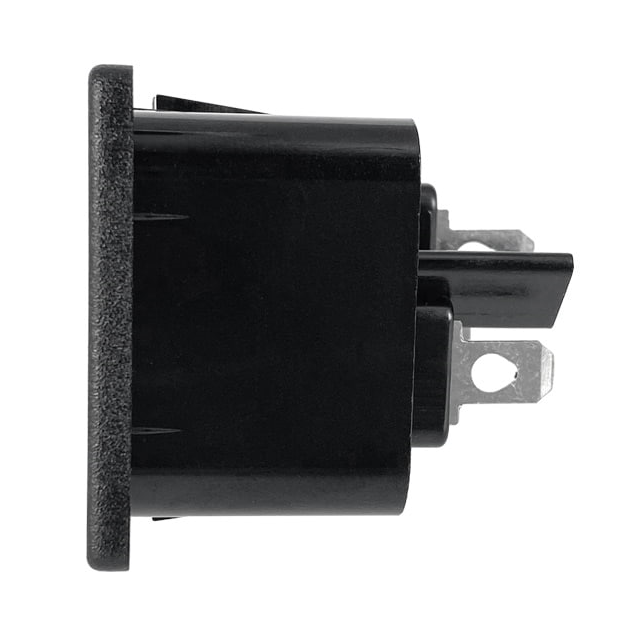

746W-15/07

746W-15/07

Part Number	746W-15/07
Manufacturer	Qualtek Electronics Corp.
Other Part Numbers	746W-15/07-ND
Description	PWR ENT RCPT IEC320-2-2J PNL QC
Detailed Description	Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/J Panel Mount, Snap-In
Manufacturer Standard Lead Time	45 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects AC Power Connectors Power Entry Modules (PEM)
Manufacturer		Qualtek Electronics Corp.
Series		746W
Packaging		Bulk
Part Status		Active
Filter Type		Unfiltered - Commercial
Connector Type		Receptacle, Female Sockets
Mounting Type		Panel Mount, Snap-In
Number of Positions		3
Termination		Quick Connect - 0.189" (4.8mm)
Approval Agency		cUL, TUV, UL
Panel Thickness		0.059" (1.50mm)
Panel Cutout Dimensions		Rectangular - 38.00mm x 29.50mm
Connector Style		IEC 320-2-2/J
Accomodates a Fuse		No
Current Rating - Appliance Inlet		16A
Voltage Rating - Appliance Inlet		250VAC

Documents & Media

RESOURCE TYPE		LINK
Datasheets		746W-15/07
Datasheets		IEC Connector Designations
Datasheets		Qualtek CA Prop 65 Statement
Datasheets		Qualtek RoHS Cert
Datasheets		Qualtek TSCA Statement
Datasheets		VDE to TUV 07/Jul/2015

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 100

Can ship immediately.
