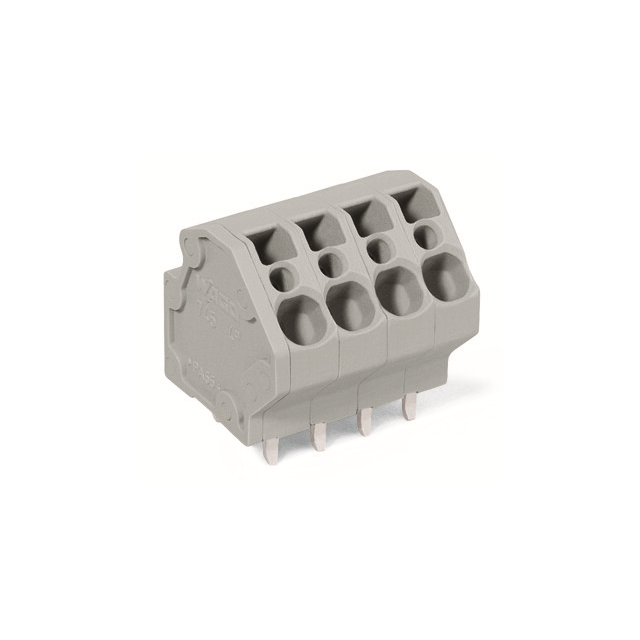

745-3107

745-3107

Part Number	745-3107
Manufacturer	WAGO
Other Part Numbers	2946-745-3107-ND 07453107 0745-3107 7453107 2946-745-3107 2943-745-3107 2943-745-3107-ND
Description	PCB TERMINAL BLOCK; 4 MM; PIN SP
Detailed Description	7 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		745
Packaging		Box
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Wire Gauge		12-28 AWG
Pitch		0.197" (5.00mm)
Operating Temperature		-60°C ~ 105°C
Mating Orientation		45° (135°) Angle with Board
Positions Per Level		7
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Spring Cage, Tension Clamp
Current		20 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
