744917147 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744917147
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-744917147TR-ND 732-744917147CT-ND 732-744917147DKR-ND 732-11285-1-ND 732-11285-6 732-744917147TR 732-744917147CT 732-744917147DKR 732-11285-6-ND 732-11285-1 732-11285-2 732-11285-2-ND
Description	FIXED IND 47NH 680MA 240MOHM SMD

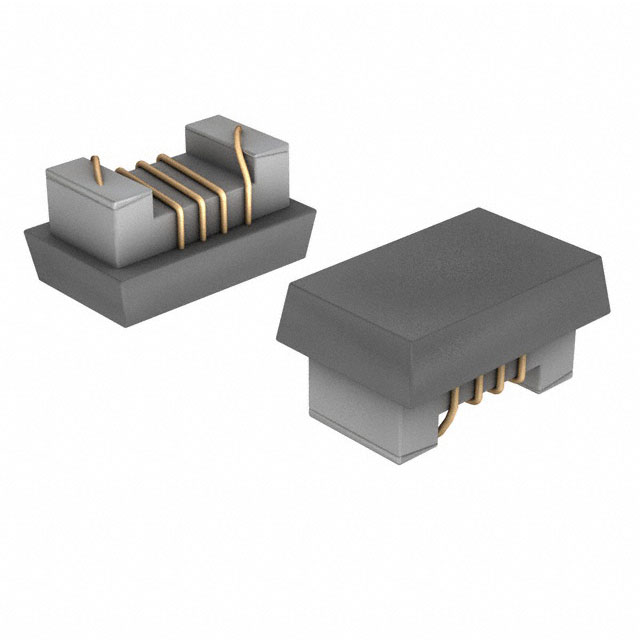

Detailed Description	47 nH Unshielded Drum Core, Wirewound Inductor 680 mA 240mOhm Max 0603 (1608 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±2%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.067" L x 0.043" W (1.70mm x 1.10mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		240mOhm Max
Q @ Freq		38 @ 250MHz
Frequency - Self Resonant		2.3GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		200 MHz
Supplier Device Package		0603 (1608 Metric)
Height - Seated (Max)		0.043" (1.10mm)
Inductance		47 nH
Current Rating (Amps)		680 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
