744917082 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744917082
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-11266-2-ND 732-11266-1-ND 732-11266-6-ND 732-11266-1 732-11266-6 732-11266-2
Description	FIXED IND 8.2NH 1.4A 54 MOHM SMD

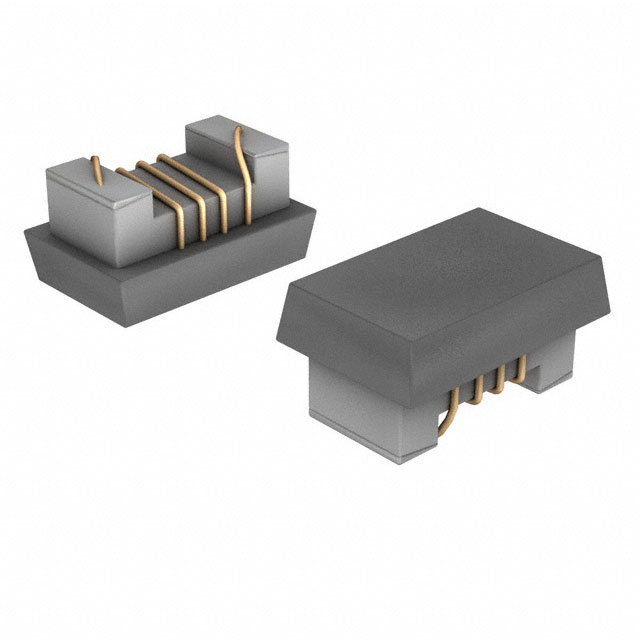

Detailed Description	8.2 nH Unshielded Drum Core, Wirewound Inductor 1.4 A 54mOhm Max 0603 (1608 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±2%
Package / Case		0603 (1608 Metric)
Size / Dimension		0.067" L x 0.043" W (1.70mm x 1.10mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		54mOhm Max
Q @ Freq		37 @ 250MHz
Frequency - Self Resonant		5.9GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0603 (1608 Metric)
Height - Seated (Max)		0.044" (1.11mm)
Inductance		8.2 nH
Current Rating (Amps)		1.4 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
