744917022 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744917022
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-11255-2-ND 732-11255-1-ND 732-11255-6-ND 732-11255-1 732-11255-6 732-11255-2
Description	FIXED IND 2.2NH 900MA 230MOHM SM

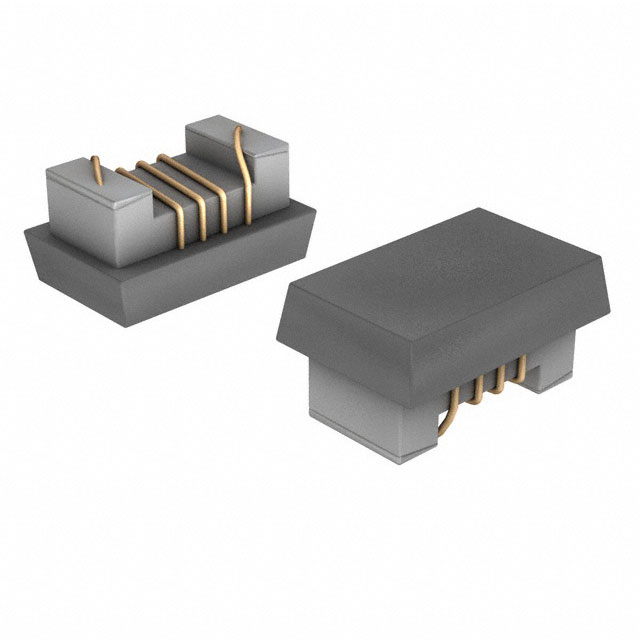

Detailed Description	2.2 nH Unshielded Drum Core, Wirewound Inductor 900 mA 230mOhm Max 0603 (1608 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±0.2nH
Package / Case		0603 (1608 Metric)
Size / Dimension		0.067" L x 0.043" W (1.70mm x 1.10mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		230mOhm Max
Q @ Freq		10 @ 250MHz
Frequency - Self Resonant		15GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0603 (1608 Metric)
Height - Seated (Max)		0.044" (1.11mm)
Inductance		2.2 nH
Current Rating (Amps)		900 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
