744916133 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744916133
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-11246-2-ND 732-11246-1-ND 732-11246-6-ND 732-11246-6 732-11246-2 732-11246-1
Description	FIXED IND 33NH 490MA 330MOHM SMD

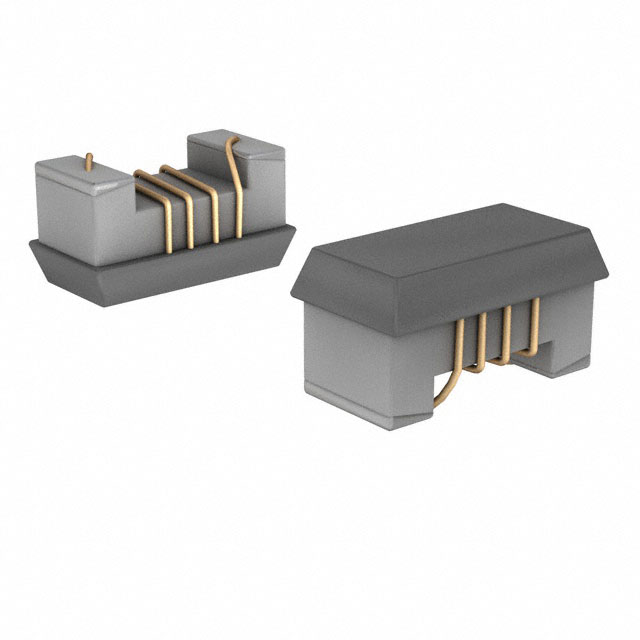

Detailed Description	33 nH Unshielded Drum Core, Wirewound Inductor 490 mA 330mOhm Max 0402 (1006 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±2%
Package / Case		0402 (1006 Metric)
Size / Dimension		0.043" L x 0.024" W (1.10mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		330mOhm Max
Q @ Freq		28 @ 250MHz
Frequency - Self Resonant		2.8GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402 (1006 Metric)
Height - Seated (Max)		0.024" (0.60mm)
Inductance		33 nH
Current Rating (Amps)		490 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
