744916110 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744916110
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-11230-2-ND 732-11230-1-ND 732-11230-6-ND 732-11230-2 732-11230-1 732-11230-6
Description	FIXED IND 10NH 1.3A 85 MOHM SMD

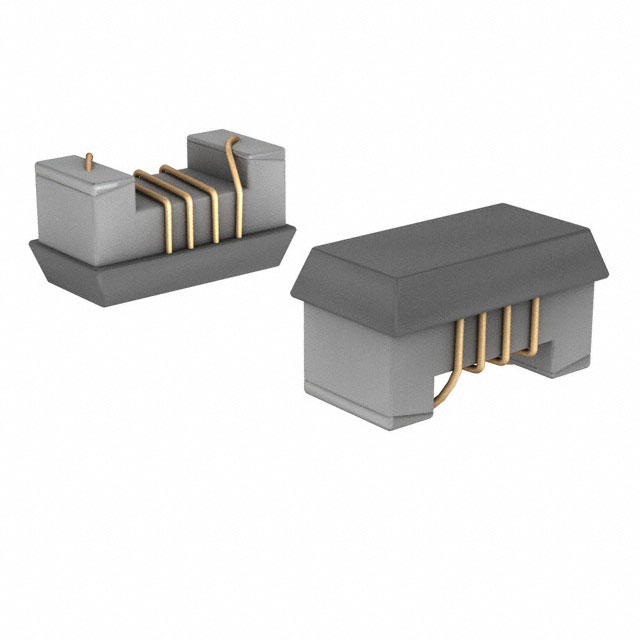

Detailed Description	10 nH Unshielded Drum Core, Wirewound Inductor 1.3 A 85mOhm Max 0402 (1006 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI HC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±2%
Package / Case		0402 (1006 Metric)
Size / Dimension		0.043" L x 0.024" W (1.10mm x 0.60mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Drum Core, Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		85mOhm Max
Q @ Freq		26 @ 250MHz
Frequency - Self Resonant		4.7GHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402 (1006 Metric)
Height - Seated (Max)		0.024" (0.60mm)
Inductance		10 nH
Current Rating (Amps)		1.3 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
