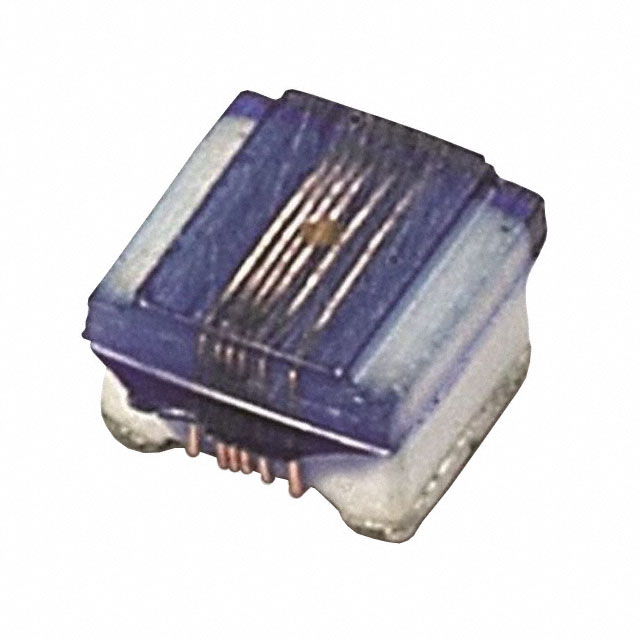

744760222A _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	744760222A
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-744760222ATR-ND 732-744760222ACT-ND 732-744760222ADKR-ND 732-744760222ADKR 732-744760222ATR 732-744760222ACT
Description	WE-KI SMT WIRE WOUND CERAMIC IND
Detailed Description	220 nH Unshielded Wirewound Inductor 400 mA 1Ohm Max 0805 (2012 Metric)
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Würth Elektronik Midcom
Series		WE-KI
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±5%
Package / Case		0805 (2012 Metric)
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		1Ohm Max
Q @ Freq		50 @ 250MHz
Frequency - Self Resonant		860MHz
Ratings		AEC-Q200
Material - Core		Ceramic
Inductance Frequency - Test		100 MHz
Supplier Device Package		0805
Height - Seated (Max)		0.055" (1.40mm)
Inductance		220 nH
Current Rating (Amps)		400 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
