Part Number |
7447231101
|
---|---|
Manufacturer | Würth Elektronik Midcom |
Other Part Numbers |
732-7180-ND
732-7180
|
Description | FIXED IND 100UH 2.6A 90 MOHM TH |

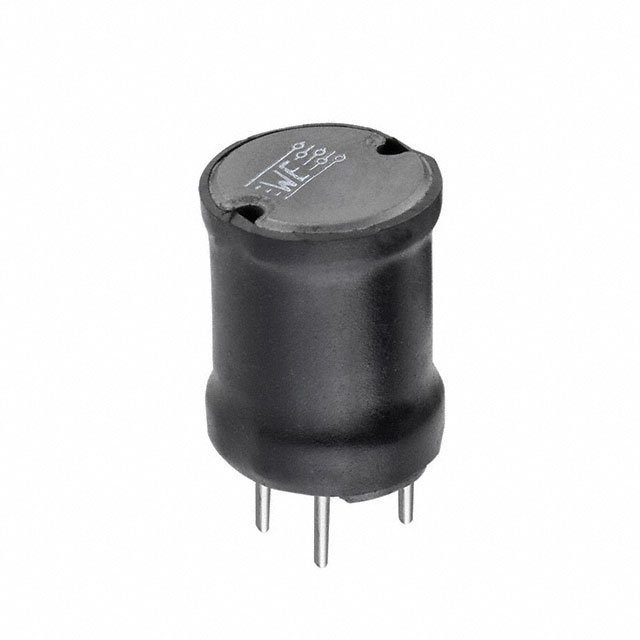

Detailed Description | 100 µH Unshielded Wirewound Inductor 2.6 A 90mOhm Max Radial, Vertical Cylinder, 4 Leads |
Manufacturer Standard Lead Time | 18 weeks |
Category | ||
---|---|---|
Manufacturer | Würth Elektronik Midcom | |
Series |
WE-TI
|
|
Packaging |
Tray
|
|
Part Status | Active | |
Tolerance | ±10% | |
Package / Case | Radial, Vertical Cylinder, 4 Leads | |
Size / Dimension | 0.430" Dia (10.92mm) | |
Mounting Type | Through Hole | |
Shielding | Unshielded | |
Type | Wirewound | |
Operating Temperature | -40°C ~ 125°C | |
DC Resistance (DCR) | 90mOhm Max | |
Frequency - Self Resonant | 3.6MHz | |
Current - Saturation (Isat) | 3.1A | |
Inductance Frequency - Test | 100 kHz | |
Height - Seated (Max) | 0.748" (19.00mm) | |
Inductance | 100 µH | |
Current Rating (Amps) | 2.6 A |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 7447231101 | |
Datasheets | RoHS Cert | |
Datasheets | WE-TI Series Datasheet Correction 28/Sep/2022 | |
Datasheets | Mult Devices Label 22/Dec/2021 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.50.8000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
