7315

Part Number
7315
Manufacturer Keystone Electronics Corp.
Other Part Numbers
36-7315-ND
7315K-ND
7315K-NDR
7315K
36-7315

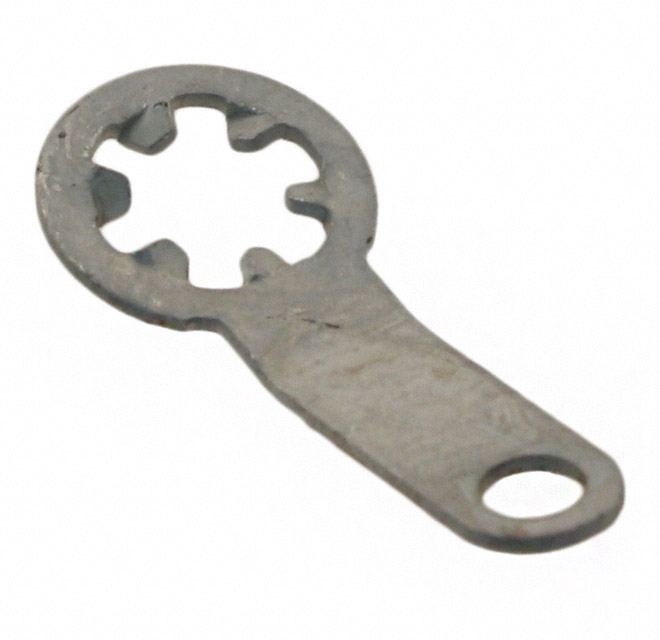

Description CONN TERM LUG LOCKWASHR #6 ANGLE
Detailed Description 6 Stud Lockwasher, Internal Tooth Lug Terminal Angled Connector
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Keystone Electronics Corp.
Series
Packaging
Bulk
Part Status Active
Contact Finish Tin
Mounting Type Angled
Style Lockwasher, Internal Tooth
Hole Diameter 0.093" (2.36mm)
Terminal Type Long Stem, Straight
Stud/Tab Size 6 Stud
Length - Overall 0.718" (18.24mm)
Contact Material Brass

Documents & Media

RESOURCE TYPE LINK
Datasheets 7315
Datasheets Keystone CA Prop65
Datasheets Keystone Electronics REACH
Datasheets RoHS Certificate
Datasheets 731(4,5,6) Side and Top
Datasheets 7315 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 13049

Can ship immediately.
