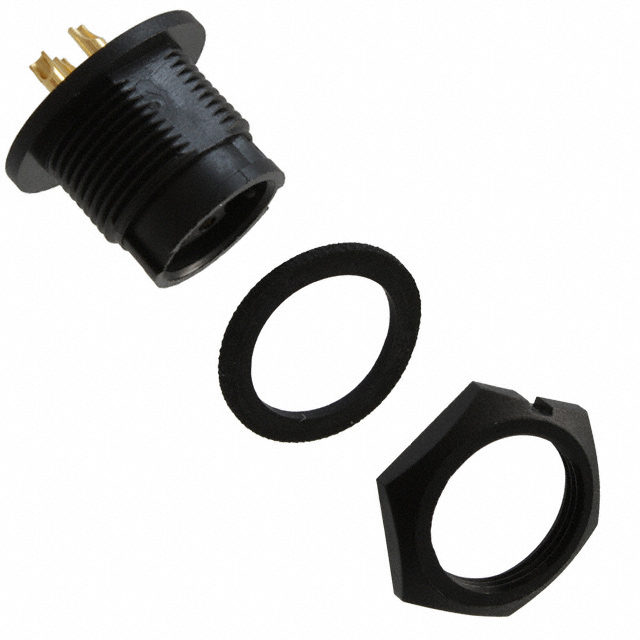

Part Number |
7282-3SG-300
|
---|---|
Manufacturer | Conxall/Switchcraft |
Other Part Numbers |
SC1275-ND
SC1275
72823SG300
|
Description | CONN RCPT FMALE 3P GOLD SLDR CUP |
Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup |
Manufacturer Standard Lead Time | 12 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Conxall/Switchcraft | |
Series |
Mini-Con-X®
|
|
Packaging |
Bulk
|
|
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Color | Black | |
Voltage Rating | 600V | |
Current Rating (Amps) | Varies by Wire Gauge | |
Mounting Type | Panel Mount | |
Shielding | Unshielded | |
Number of Positions | 3 | |
Orientation | Keyed | |
Operating Temperature | -40°C ~ 115°C | |
Applications | Automotive, Communication Systems, Instrumentation | |
Fastening Type | Bayonet Lock | |
Termination | Solder Cup | |
Ingress Protection | Weathertight | |
Mounting Feature | Bulkhead - Front Side Nut | |
Contact Material | Brass | |
Contact Finish - Mating | Gold | |
Shell Material | Polyamide (PA), Nylon | |
Backshell Material, Plating | Polyamide (PA), Nylon | |
Primary Material | Plastic |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 7282-3SG-300 | |
Datasheets | Mini-Con-X Sealed Connectors and Cables | |
Datasheets | Conxall RoHS Cert | |
Datasheets | Switchcraft RoHS Cert | |
Datasheets | 282 Series-3 Position |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.4020 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
