722-240/039-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	722-240/039-000
Manufacturer	WAGO
Other Part Numbers	2946-722-240/039-000-ND 2943-722-240/039-000 722240/039000 0722240/039000 2943-722-240/039-000-ND 2946-722-240/039-000 0722-0240/0039-0000 51135369 0722-240/039-000

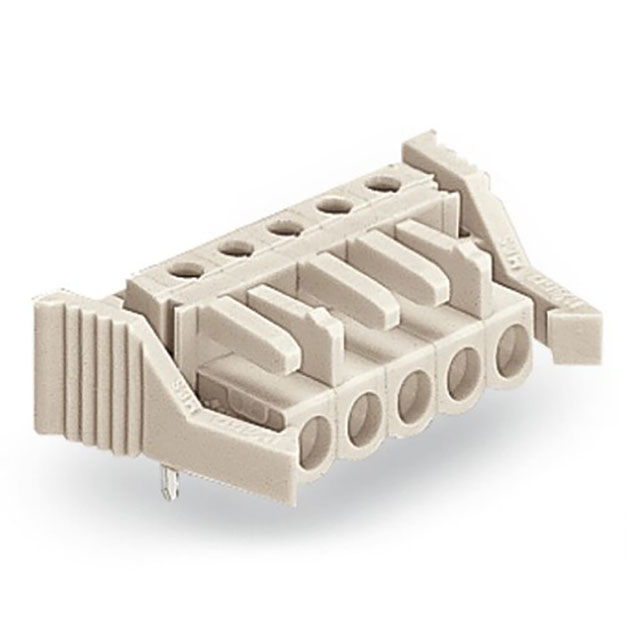

Description	THT FEMALE HEADER; 0.6 X 1.0 MM
Detailed Description	10 Position Terminal Block Header, Female Sockets 0.197" (5.00mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI
Packaging		Box
Part Status		Active
Features		Ejector Latches, Retention Latches (Non-Wire Side)
Color		Gray
Mounting Type		Through Hole
Number of Positions		10
Pitch		0.197" (5.00mm)
Type		Header, Female Sockets
Operating Temperature		-60°C ~ 85°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		10
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.197" (5.00mm)
Insulation Height		0.457" (11.60mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		722-240/039-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
