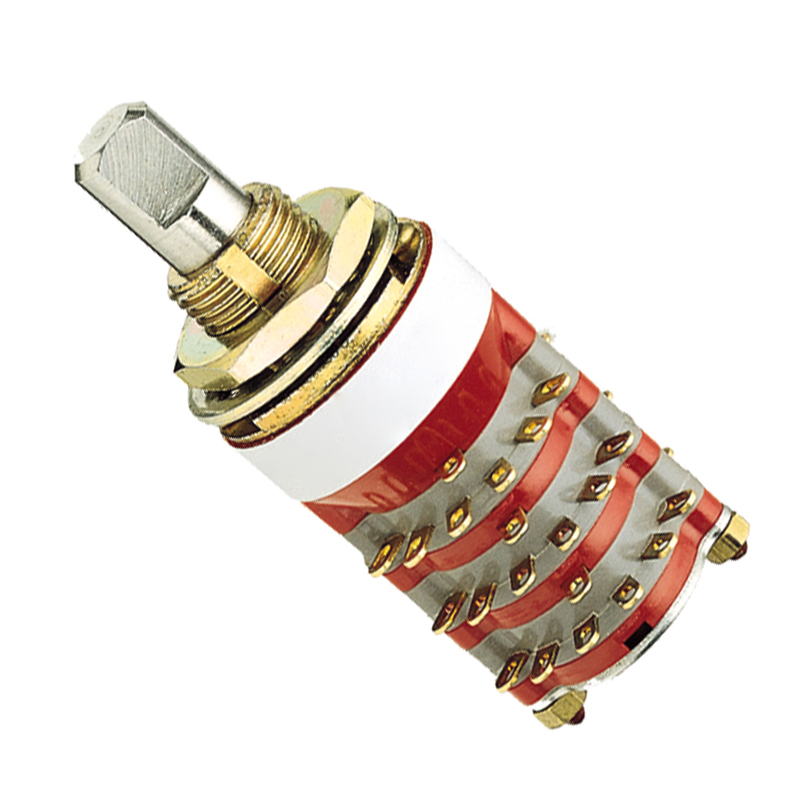

71B30-06-2-02N

71B30-06-2-02N

Part Number	71B30-06-2-02N
Manufacturer	Grayhill, Inc.
Other Part Numbers	71B30-06-2-02N-ND 2266-71B30-06-2-02N
Description	SWITCH ROTARY 2POS 250MA 115V
Detailed Description	Rotary Switch 2 Position DPDT 250mA (AC/DC) 115 VAC Panel Mount
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Switches Rotary Switches
Manufacturer		Grayhill, Inc.
Series		71
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		250mA (AC/DC)
Mounting Type		Panel Mount
Number of Positions		2
Termination Style		Solder Lug
Actuator Length		9.53mm
Actuator Type		Flatted (6.35mm Dia)
Angle of Throw		30°
Number of Decks		6
Number of Poles per Deck		2
Circuit per Deck		DPDT
Contact Material		Silver Alloy
Contact Timing		Non-Shorting (BBM)
Index Stops		Fixed
Depth Behind Panel		54.13mm
Voltage Rating - AC		115 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
