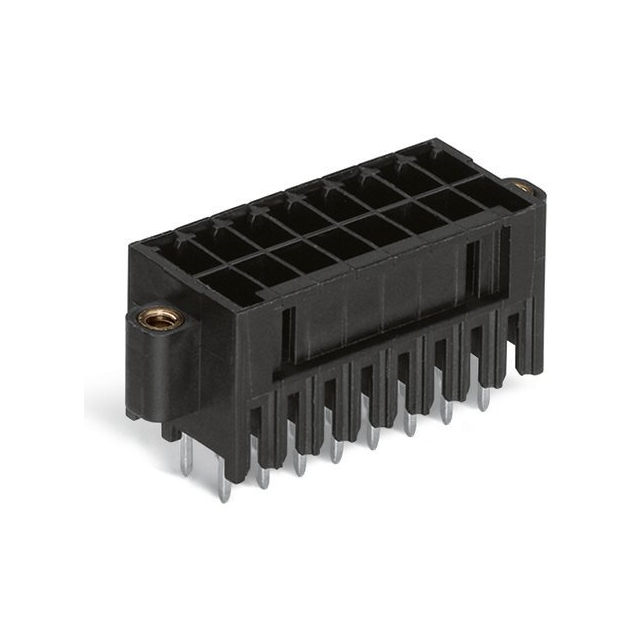

713-1405/107-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	713-1405/107-000
Manufacturer	WAGO
Other Part Numbers	2946-713-1405/107-000-ND 51209264 0713-1405/107-000 07131405/107000 7131405/107000 0713-1405/0107-0000 2943-713-1405/107-000-ND 2946-713-1405/107-000 2943-713-1405/107-000
Description	THT MALE HEADER, 2-ROW; 0.8 X 0.
Detailed Description	10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMINI HD
Packaging		Box
Part Status		Active
Features		Mounting Flange
Color		Black
Mounting Type		Through Hole
Number of Positions		10
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		2
Positions Per Level		5
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.150" (3.81mm)
Insulation Height		0.531" (13.50mm)
Current - UL		10 A
Voltage - IEC		250 V
Voltage - UL		150 V

RESOURCE TYPE		LINK
Datasheets		713-1405/107-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
