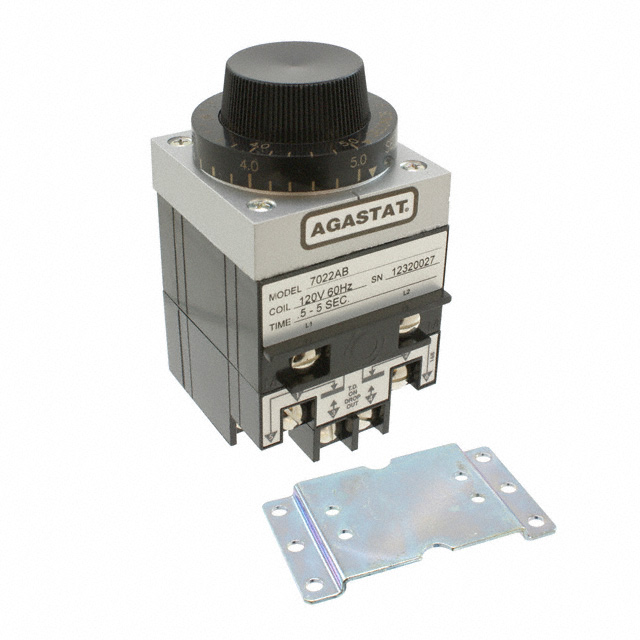

7022AB

7022AB

Part Number	7022AB
Manufacturer	TE Connectivity Aerospace Defense and Marine
Other Part Numbers	A105140-ND 7022AB-ND A105140 1423162-2-ND 14231622 1423162-2
Description	RELAY TIME DELAY 5SEC 10A 240V
Detailed Description	Off-Delay Time Delay Relay DPDT (2 Form C) 0.5 Sec ~ 5 Sec Delay 10A @ 240VAC Panel Mount
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Product Attributes

Category		Industrial Automation and Controls Time Delay Relays
Manufacturer		TE Connectivity Aerospace Defense and Marine
Series		7000, AGASTAT
Packaging		Bulk
Part Status		Active
Delay Time		0.5 Sec ~ 5 Sec
Mounting Type		Panel Mount
Function		Off-Delay
Circuit		DPDT (2 Form C)
Termination Style		Screw Terminal
Voltage - Supply		120VAC
Contact Rating @ Voltage		10A @ 240VAC
Relay Type		Mechanical Relay
Timing Adjustment Method		Hand Dial
Timing Initiate Method		Input Voltage

Documents & Media

RESOURCE TYPE		LINK
Datasheets		7022AB
Datasheets		7000 AGASTAT Series Instr Sheet
Datasheets		New test equipment 16/FEB/2024

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.49.0075
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
