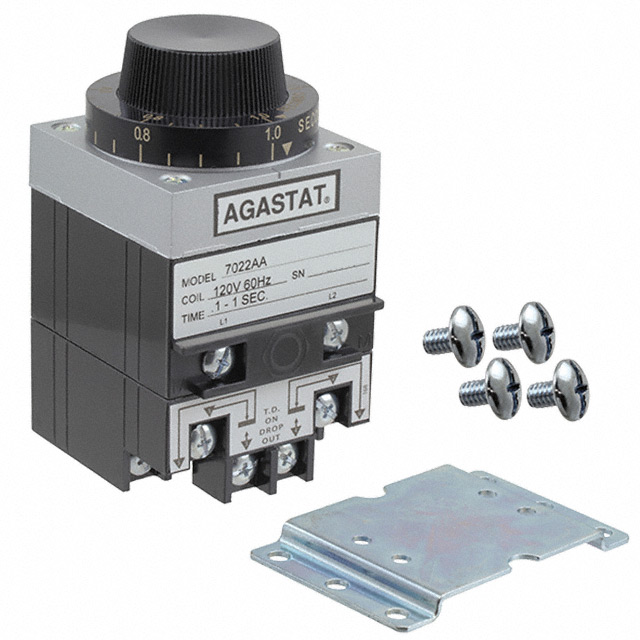

7022AA

7022AA

Part Number	7022AA
Manufacturer	TE Connectivity Potter & Brumfield Relays
Other Part Numbers	PB2231-ND 7022AA-ND Q8123345 1423162-1 PB2231
Description	RELAY TIME DELAY 1SEC 10A 240V
Detailed Description	Off-Delay Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 1 Sec Delay 10A @ 240VAC Panel Mount
Manufacturer Standard Lead Time	21 weeks

Product Attributes

Category		Industrial Automation and Controls Time Delay Relays
Manufacturer		TE Connectivity Potter & Brumfield Relays
Series		7000, AGASTAT
Packaging		Bulk
Part Status		Active
Delay Time		0.1 Sec ~ 1 Sec
Mounting Type		Panel Mount
Function		Off-Delay
Circuit		DPDT (2 Form C)
Termination Style		Screw Terminal
Voltage - Supply		120VAC
Contact Rating @ Voltage		10A @ 240VAC
Relay Type		Mechanical Relay
Timing Adjustment Method		Hand Dial
Timing Initiate Method		Input Voltage

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.49.0075
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
