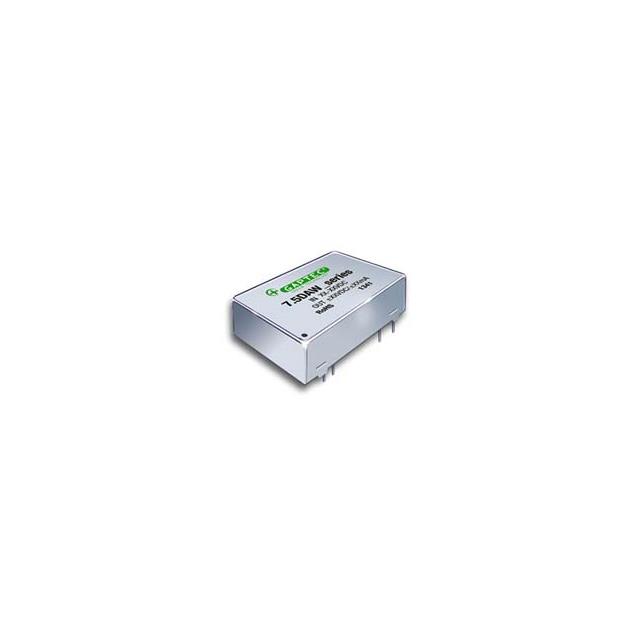

7.5DAW_4824S2

7.5DAW_4824S2

Part Number	7.5DAW_4824S2
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-7.5DAW_4824S2-ND 3182-7.5DAW_4824S2DKR 3182-7.5DAW_4824S2CTINACTIVE 3182-7.5DAW_4824S2DKRINACTIVE 3182-7.5DAW_4824S2CT-ND 3182-7.5DAW_4824S2TR-ND 3182-7.5DAW_4824S2CT 3182-7.5DAW_4824S2 3182-7.5DAW_4824S2DKR-ND 3182-7.5DAW_4824S2TR
Description	DC-DC INDUSTRIAL
Detailed Description	Isolated Module DC DC Converter 1 Output 24V 312mA 36V - 75V Input
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		GAPTEC Electronic
Series		7.5DAW_2 (7.5W)
Packaging		Tape & Reel (TR)
Part Status		Active
Package / Case		24-DIP Module, 9 Leads
Size / Dimension		1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 100°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		75V
Efficiency		84%
Current - Output (Max)		312mA
Voltage - Input (Min)		36V
Voltage - Output 1		24V
Power (Watts)		7.488 W
Number of Outputs		1
Voltage - Isolation		2 kV

Documents & Media

RESOURCE TYPE		LINK
Datasheets		7.5DAW_4824S2

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
