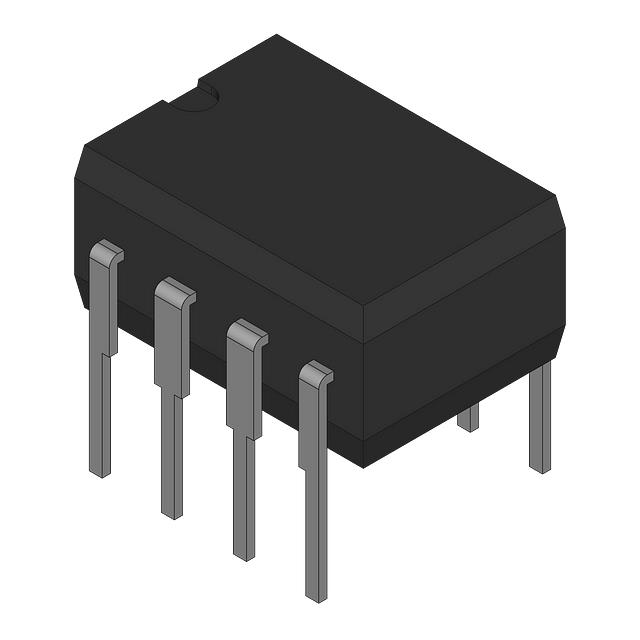

6N138

6N138

Part Number	6N138
Manufacturer	Texas Instruments
Other Part Numbers	2156-6N138-ND TEXTIS6N138 2156-6N138
Description	LOGIC IC OUTPUT OPTOCOUPLER
Detailed Description	Optoisolator Darlington with Base Output 5300Vrms 1 Channel 8-DIP

Product Attributes

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Texas Instruments
Series
Packaging		Bulk
Part Status		Active
Package / Case		8-DIP (0.300", 7.62mm)
Output Type		Darlington with Base
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.4V
Input Type		DC
Current - Output / Channel		60mA
Voltage - Isolation		5300Vrms
Current Transfer Ratio (Min)		300% @ 1.6mA
Supplier Device Package		8-DIP
Voltage - Output (Max)		7V
Turn On / Turn Off Time (Typ)		2µs, 2µs
Number of Channels		1
Current - DC Forward (If) (Max)		25 mA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

Available To Order

QUANTITY

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
{{ p.name }}	{{ numberFormat(p.buyQty) }}	{{ priceFormat(p.unitPrice) }}	{{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY	UNIT PRICE	EXT PRICE
{{ numberFormat(price.break_quantity) }}	{{ priceFormat(price.unit_price) }}	{{ priceFormat(price.break_quantity * price.unit_price) }}

Detailed pricing is currently unavailable.

Detailed packaging information is temporarily unavailable.
