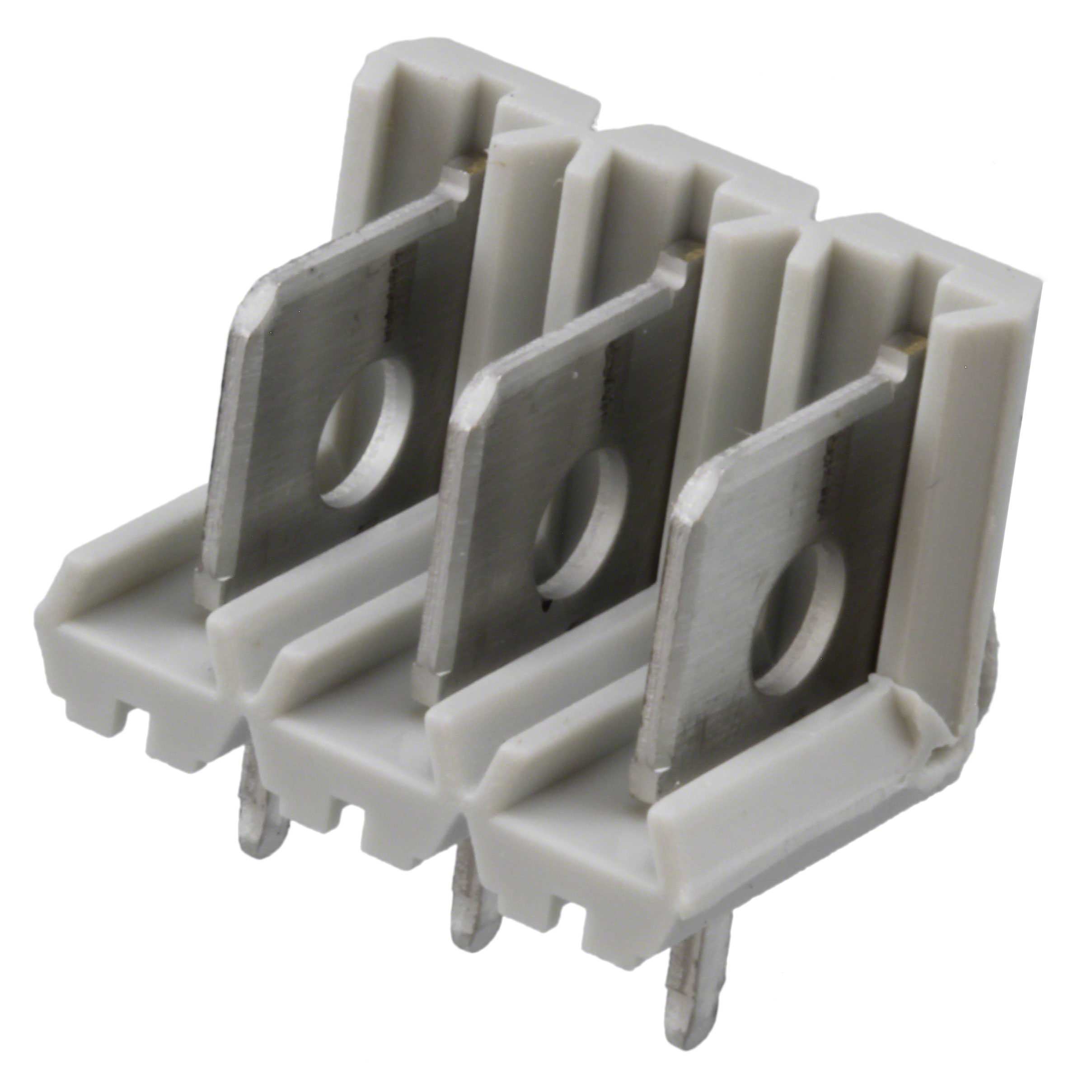

691386700003 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	691386700003
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-5983-ND 732-5983
Description	TERM BLOCK HDR 3POS VERT 5MM
Detailed Description	3 Position Terminal Block Header, Blade Pins 0.197" (5.00mm) Vertical Through Hole
Manufacturer Standard Lead Time	19 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Würth Elektronik Midcom
Series		WR-TBL Series 386
Packaging		Tray
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Number of Positions		3
Pitch		0.197" (5.00mm)
Type		Header, Blade Pins
Operating Temperature		-30°C ~ 130°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		16A
Number of Levels		1
Positions Per Level		3
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polycarbonate (PC)
Contact Tail Length		0.161" (4.10mm)
Insulation Height		0.429" (10.90mm)
Current - UL		14 A
Voltage - IEC		250 V
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
