691382010004 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	691382010004
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-6039-ND 732-6039

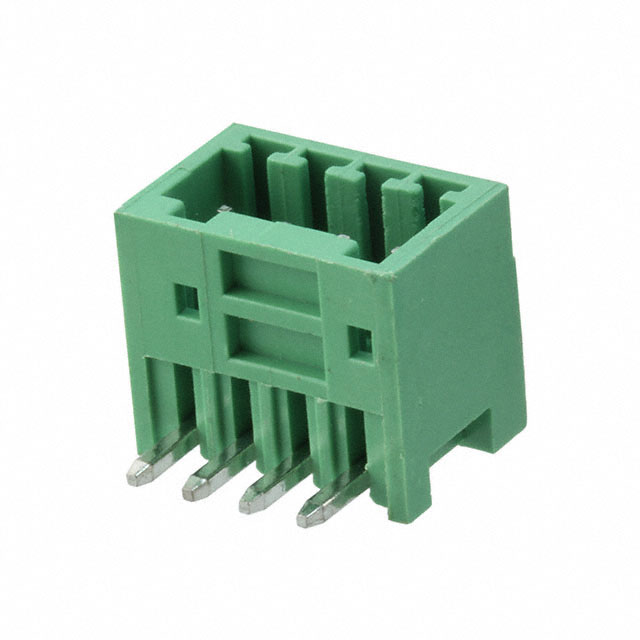

Description	TERM BLOCK HDR 4POS 90DEG 2.5MM
Detailed Description	4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	11 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Würth Elektronik Midcom
Series		WR-TBL Series 382
Packaging		Tray
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		4
Pitch		0.098" (2.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-40°C ~ 105°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Number of Levels		1
Positions Per Level		4
Contact Material		Copper Alloy
Header Orientation		90°, Right Angle
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.138" (3.50mm)
Insulation Height		0.319" (8.10mm)
Current - UL		12 A
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
