691311400108 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	691311400108
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-2828-ND 732-2828 -732-2828

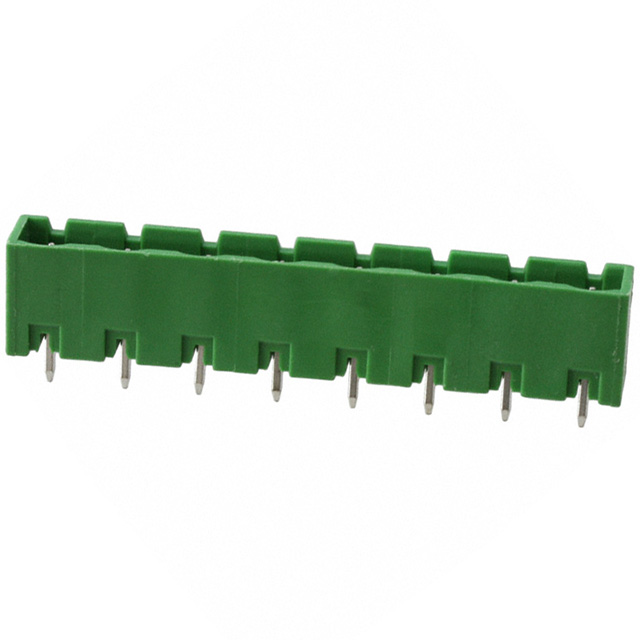

Description	TERM BLOCK HDR 8POS VERT 7.62MM
Detailed Description	8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Würth Elektronik Midcom
Series		WR-TBL Series 3114
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Through Hole
Number of Positions		8
Pitch		0.300" (7.62mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-40°C ~ 105°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Number of Levels		1
Positions Per Level		8
Contact Material		Brass
Header Orientation		Vertical
Housing Material		Polybutylene Terephthalate (PBT)
Contact Mating Finish		Tin
Contact Tail Length		0.157" (4.00mm)
Insulation Height		0.472" (12.00mm)
Current - UL		20 A
Voltage - UL		300 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
