68758-136 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	68758-136
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	68758-136-ND

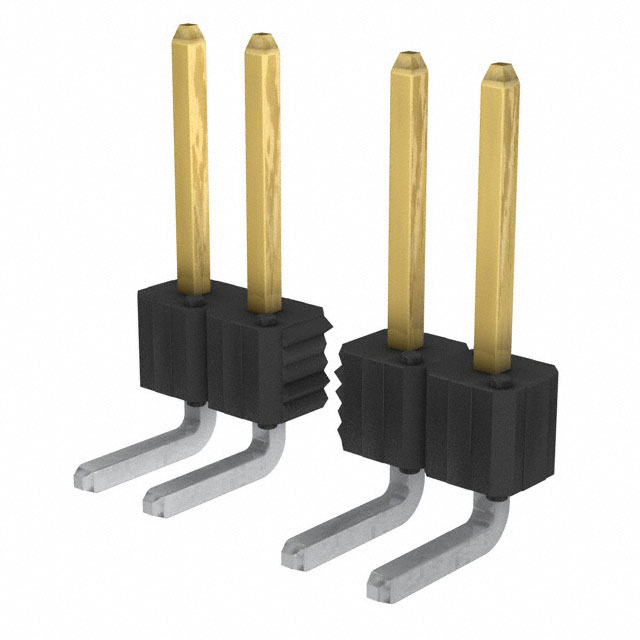

Description	CONN HEADER R/A 36POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 36 position 0.100" (2.54mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		BERGSTIK® II
Packaging		Bulk
Part Status		Obsolete
Connector Type		Header
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		36
Number of Rows		1
Style		Board to Board
Operating Temperature		-65°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold or Gold, GXT™
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Shape		Square
Contact Length - Post		0.120" (3.05mm)
Insulation Height		0.095" (2.41mm)
Shrouding		Unshrouded
Contact Length - Mating		0.275" (6.99mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
