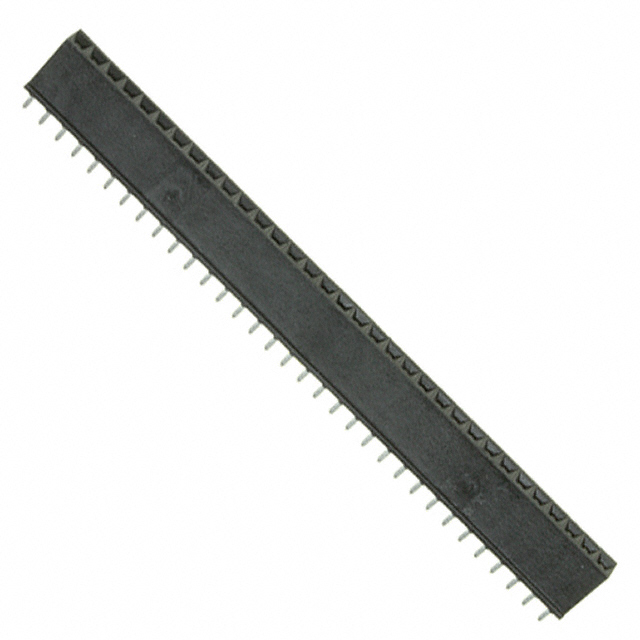

66951-033LF _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	66951-033LF
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Other Part Numbers	609-2263-ND 609-2263
Description	CONN RCPT 33POS 0.1 GOLD PCB
Detailed Description	33 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Storage & Server IO (Amphenol Communications Solutions)
Series		Dubox™, BergCon® PV™
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Voltage Rating		1250V
Mounting Type		Through Hole
Number of Positions		33
Style		Board to Board
Operating Temperature		-65°C ~ 125°C
Applications		Automotive, General Purpose, Industrial, Medical, Telecommunications
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		100.0µin (2.54µm)
Contact Shape		Square
Contact Length - Post		0.142" (3.60mm)
Insulation Height		0.325" (8.25mm)
Insulation Material		Polyester, Glass Filled
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
