Part Number |
640602-5
|
---|---|
Manufacturer | TE Connectivity AMP Connectors |
Other Part Numbers |
A19723-ND
A19723
|

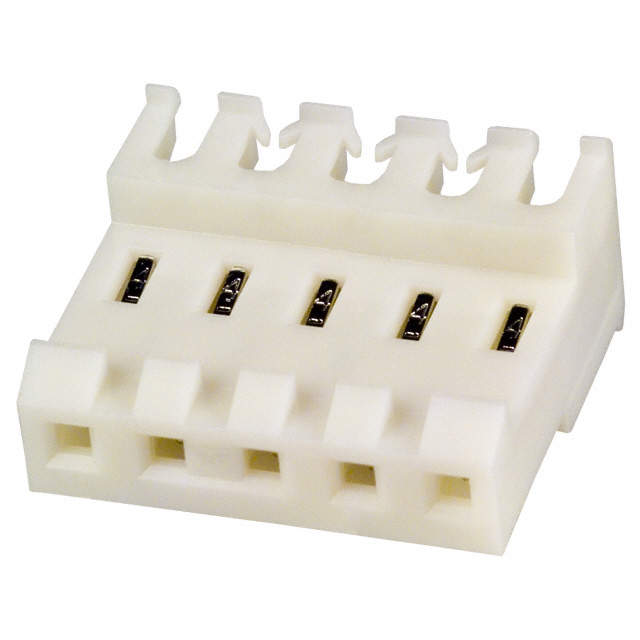

Description | CONN RCPT 5P IDC 24AWG TIN-LEAD |
Detailed Description | 5 Position Rectangular Receptacle Connector IDC Tin-Lead 24 AWG |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | TE Connectivity AMP Connectors | |
Series |
MTA-156
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Feed Through | |
Connector Type | Receptacle | |
Contact Finish | Tin-Lead | |
Color | White | |
Mounting Type | Free Hanging (In-Line) | |
Wire Gauge | 24 AWG | |
Number of Positions | 5 | |
Pitch | 0.156" (3.96mm) | |
Contact Type | Female Socket | |
Fastening Type | Locking Ramp | |
Contact Finish Thickness | 80.0µin (2.03µm) | |
Wire Type | Discrete or Ribbon Cable | |
Cable Termination | IDC | |
Number of Rows | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 640602-5 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.69.8000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Affected | |
RoHS Status | RoHS non-compliant |
