640453-3 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	640453-3
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A19340-ND -640453-3-SI 6404533 2266-640453-3 A19340
Description	CONN HEADER R/A 3POS 2.54MM

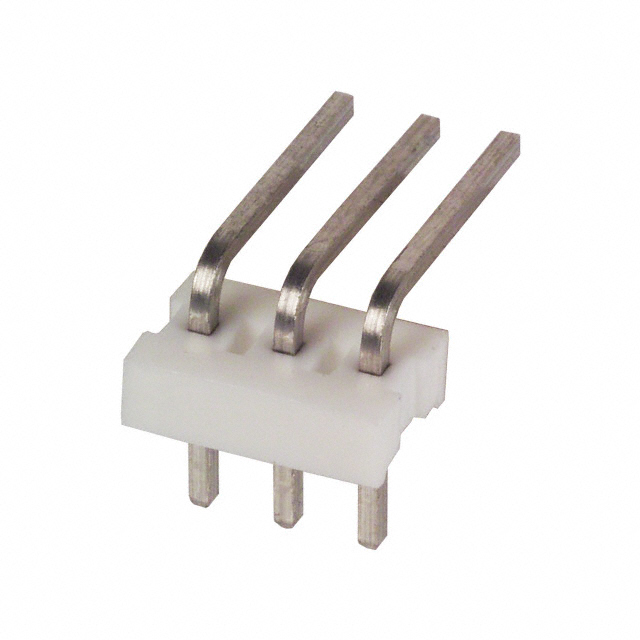

Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity AMP Connectors
Series		MTA-100
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250VAC
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Through Hole, Right Angle
Number of Positions		3
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 105°C
Applications		General Purpose
Contact Type		Male Pin
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Natural

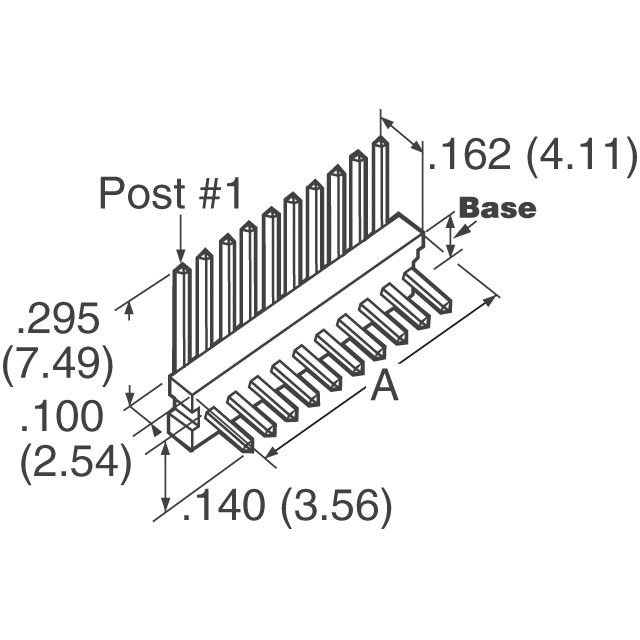

Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.140" (3.56mm)
Insulation Height		0.100" (2.54mm)
Shrouding		Unshrouded
Insulation Material		Thermoplastic
Contact Length - Mating		0.295" (7.49mm)

RESOURCE TYPE		LINK
Datasheets		640453-3
Datasheets		640453-3 Statement of Compliance
Datasheets		Multiple Drawings Update 24/Jul/2014
Datasheets		640453-3.pdf
Datasheets		64 Series Right Angle Post Header

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
