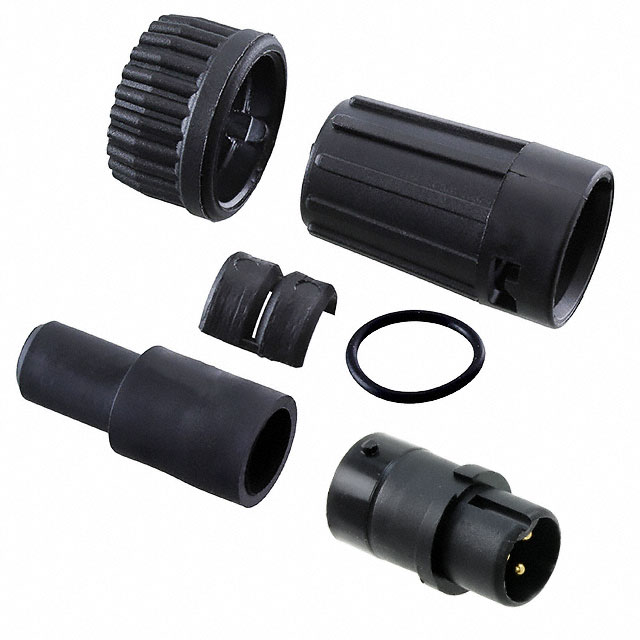

6282-3PG-519 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	6282-3PG-519
Manufacturer	Conxall/Switchcraft
Other Part Numbers	SC3061-ND SC3061 6282-3PG-519-ND
Description	CONN PLUG MALE 3P GOLD SLDR CUP
Detailed Description	3 Position Circular Connector Plug, Male Pins Solder Cup
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Conxall/Switchcraft
Series		Mini-Con-X®
Packaging		Bulk
Part Status		Active
Features		Backshell
Connector Type		Plug, Male Pins
Color		Black
Voltage Rating		600V
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Number of Positions		3
Orientation		Keyed
Operating Temperature		-40°C ~ 115°C
Applications		Automotive, Communication Systems, Instrumentation
Fastening Type		Bayonet Lock
Termination		Solder Cup
Ingress Protection		Weathertight
Cable Opening		0.190" ~ 0.210" (4.83mm ~ 5.33mm)
Contact Material		Brass
Contact Finish - Mating		Gold
Shell Material		Polyamide (PA), Nylon
Backshell Material, Plating		Polyamide (PA), Nylon
Primary Material		Plastic

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
