6280-4SG-318 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	6280-4SG-318
Manufacturer	Conxall/Switchcraft
Other Part Numbers	SC3057-ND SC3057 6280-4SG-318-ND
Description	CONN PLUG FMALE 4POS GOLD CRIMP

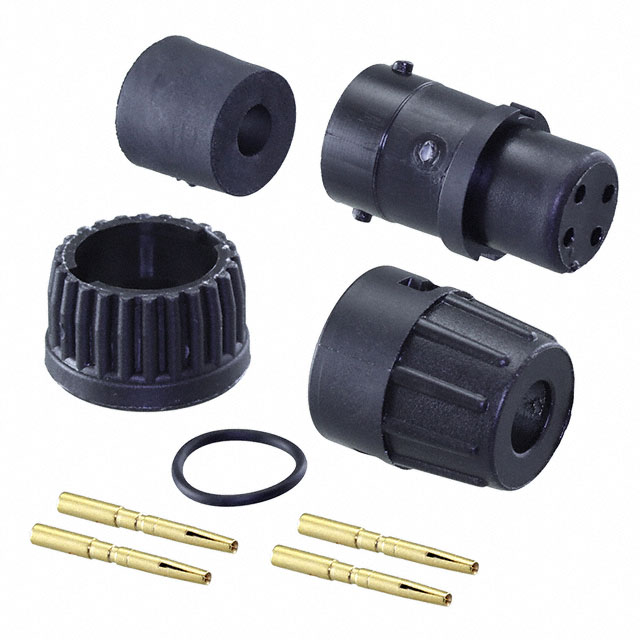

Detailed Description	4 Position Circular Connector Plug, Female Sockets Crimp
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		Conxall/Switchcraft
Series		Mini-Con-X®
Packaging		Bulk
Part Status		Active
Features		Backshell
Connector Type		Plug, Female Sockets
Color		Black
Voltage Rating		600V
Current Rating (Amps)		Varies by Wire Gauge
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Number of Positions		4
Orientation		Keyed
Operating Temperature		-40°C ~ 115°C
Applications		Automotive, Communication Systems, Instrumentation
Fastening Type		Bayonet Lock
Termination		Crimp
Ingress Protection		Weathertight
Cable Opening		0.180" ~ 0.200" (4.57mm ~ 5.08mm)
Contact Material		Brass
Contact Finish - Mating		Gold
Shell Material		Polyamide (PA), Nylon
Backshell Material, Plating		Polyamide (PA), Nylon
Primary Material		Plastic

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
