61900411121 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	61900411121
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-2697-ND 732-2697 3937-61900411121 -732-2697

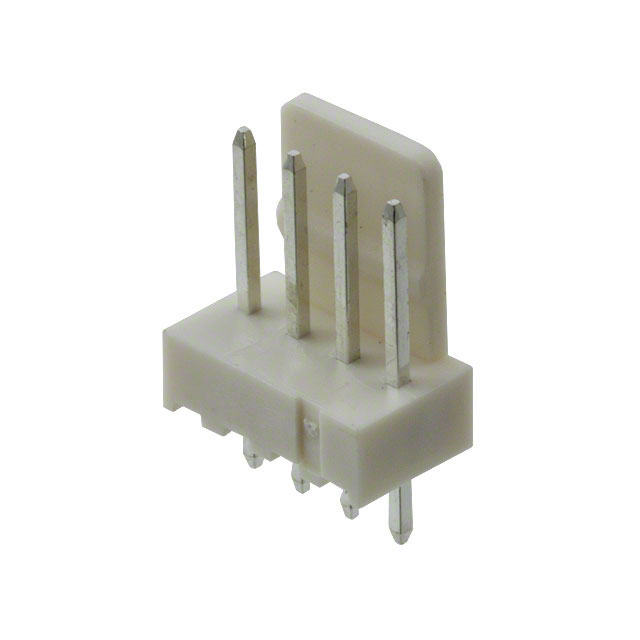

Description	CONN HEADER VERT 4POS 2.54MM
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Würth Elektronik Midcom
Series		WR-WTB
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		4
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Friction Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Beige
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.453" (11.50mm)
Shrouding		Shrouded - 1 Wall
Overall Contact Length		0.559" (14.20mm)
Insulation Material		Polyamide (PA66), Nylon 6/6
Contact Length - Mating		0.295" (7.49mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
