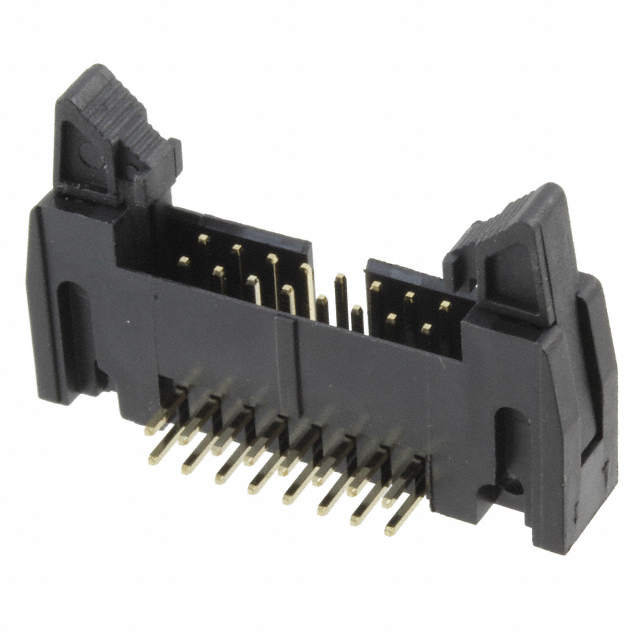

61201622121 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	61201622121
Manufacturer	Würth Elektronik Midcom
Other Part Numbers	732-2692-ND 732-2692 -732-2692
Description	CONN HEADER R/A 16POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Würth Elektronik Midcom
Series		WR-BHD
Packaging		Tray
Part Status		Active
Features		Keying Slot
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		16
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Latch Lock/Eject Hooks, Short
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.327" (8.30mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polybutylene Terephthalate (PBT)
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.224" (5.70mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
