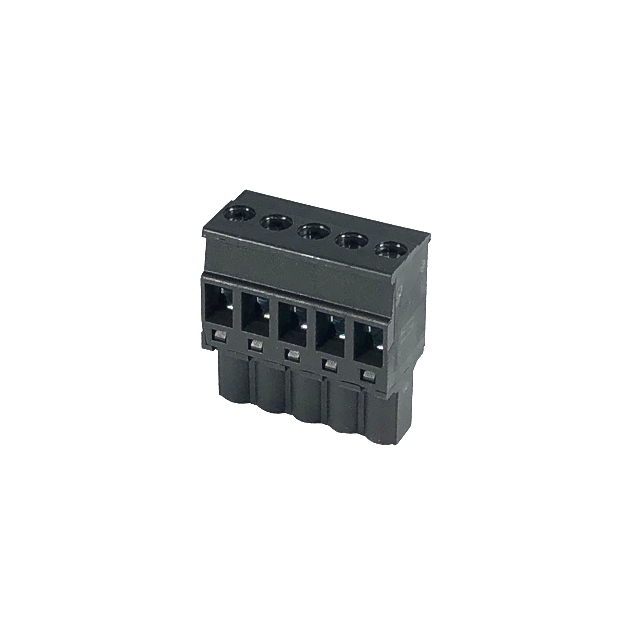

5ESDPL-05P-BK _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	5ESDPL-05P-BK
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-5ESDPL-05P-BK-ND 2861-5ESDPL-05P-BK
Description	TERM BLK 5POS 5.00MM SCRW PLG
Detailed Description	5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		5ESDPL
Packaging		Bulk
Part Status		Active
Features		Retention Latches
Color		Black
Mounting Type		Free Hanging (In-Line)
Number of Positions		5
Pitch		0.197" (5.00mm)
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw
Current - IEC		18A
Number of Levels		1
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		5
Plug Wire Entry		270°
Current - UL		15 A
Voltage - IEC		600 A
Voltage - UL		300 A

RESOURCE TYPE		LINK
Datasheets		5ESDPL-05P-BK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
