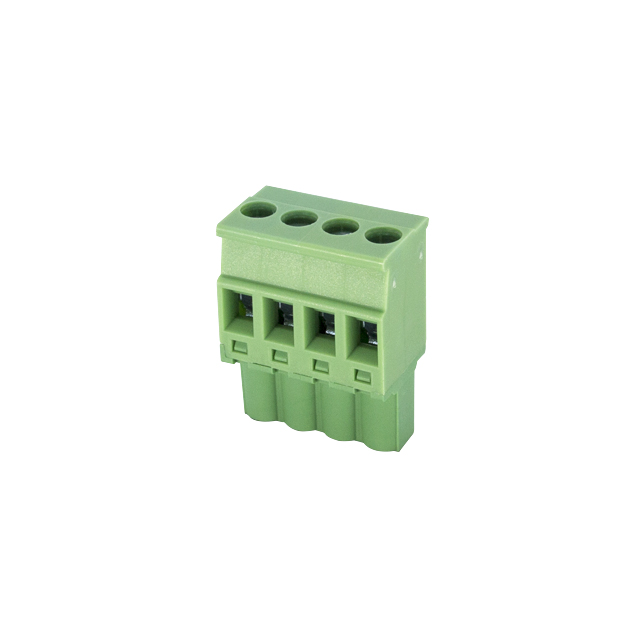

5ESDPL-04P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	5ESDPL-04P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-5ESDPL-04P-ND 2861-5ESDPL-04P
Description	TERM BLK 4POS 5.00MM SCRW PLG
Detailed Description	4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		5ESDPL
Packaging		Bulk
Part Status		Active
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		4
Pitch		0.197" (5.00mm)
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw - Rising Cage Clamp
Current - IEC		18A
Number of Levels		1
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		4
Plug Wire Entry		270°
Contact Mating Finish		Tin
Current - UL		15 A
Voltage - IEC		600 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		5ESDPL-04P

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
