5978018701 _ Ferrite Cores_Magnetics - Transformer, Inductor Components_

+86-0755-8325-4547

5978018701

5978018701

Part Number	5978018701
Manufacturer	Fair-Rite Products Corp.
Other Part Numbers	1934-5978018701-ND 1934-5978018701CT-ND 1934-5978018701 1934-5978018701DKR-ND 1934-5978018701CT 1934-5978018701TR 1934-5978018701TR-ND 1934-5978018701DKRINACTIVE 1934-5978018701CTINACTIVE 5978018701-ND 1934-5978018701DKR

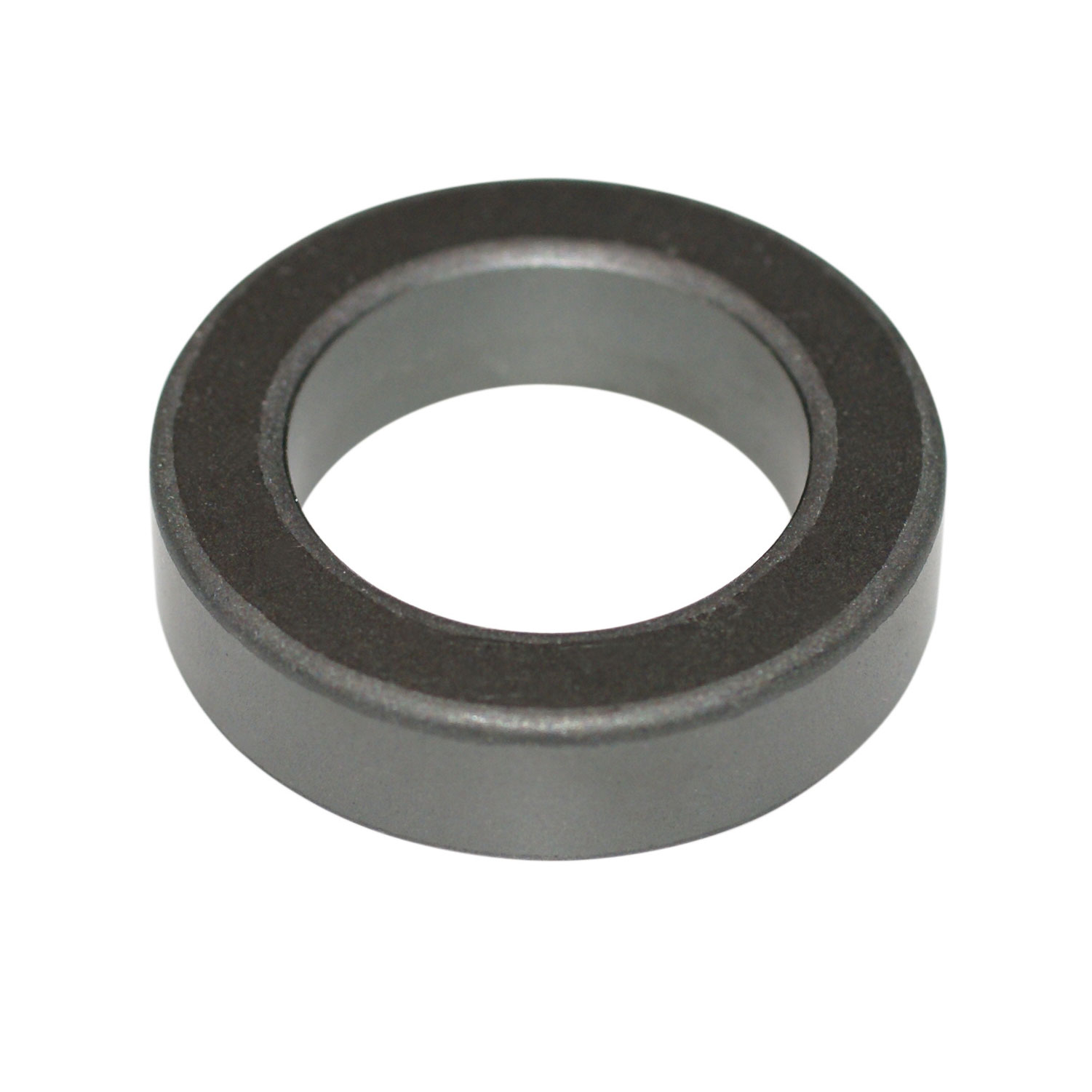

Description	FERRITE CORE TOROID 78
Detailed Description	Uncoated 78 Ferrite Core Toroid Type Length Width Diameter Height
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Magnetics - Transformer, Inductor Components Ferrite Cores
Manufacturer		Fair-Rite Products Corp.
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±25%
Material		78
Core Type		Toroid
Initial Permeability (µi)		2300
Finish		Uncoated
Gap		Ungapped
Effective Length (le) mm		133.0
Effective Area (Ae) mm²		207.0
Effective Magnetic Volume (Ve) mm³		27600.0

Documents & Media

RESOURCE TYPE		LINK
Datasheets		5978018701
Datasheets		RoHS Cert
Datasheets		Fair-Rite REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.90.9630
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 90

Can ship immediately.
