5977731207

Part Number
5977731207
Manufacturer Dialight
Other Part Numbers
350-1359-2-ND
350-1359-1-ND
350-1359-2
350-1359-1
597-7731-207

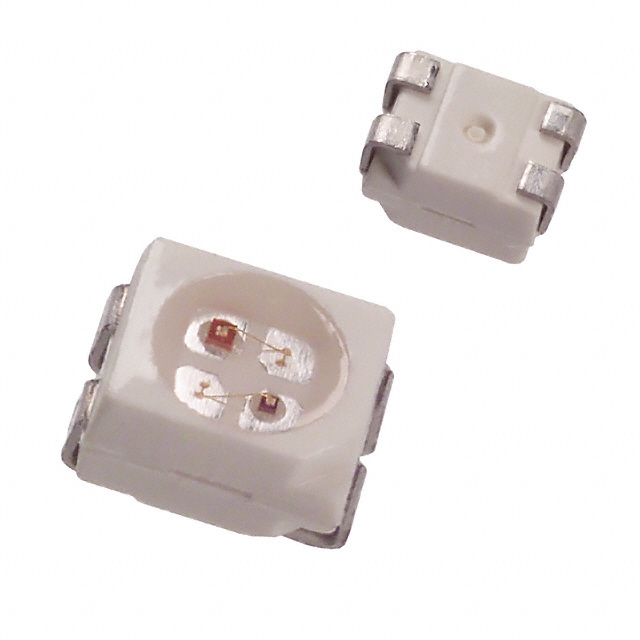

Description LED RED/YELLOW CLEAR 4PLCC SMD
Detailed Description Red, Yellow LED Indication - Discrete 2V Red, 2V Yellow 4-PLCC
Datasheet Datasheet

Product Attributes

Category
Manufacturer Dialight
Series
microLED®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case 4-PLCC
Color Red, Yellow
Size / Dimension 3.20mm L x 2.80mm W
Mounting Type Surface Mount
Millicandela Rating 7.3mcd Red, 6.8mcd Yellow
Configuration Independent
Voltage - Forward (Vf) (Typ) 2V Red, 2V Yellow
Lens Color Colorless
Current - Test 10mA Red, 10mA Yellow
Viewing Angle 120°
Height (Max) 2.10mm
Wavelength - Peak 635nm Red, 586nm Yellow
Supplier Device Package 4-PLCC
Lens Transparency Clear
Lens Style Round with Flat Top
Lens Size 2.39mm Dia

Documents & Media

RESOURCE TYPE LINK
Datasheets 5977731207
Datasheets 597-7xx1-107 Series Schematic
Datasheets 597-7xx1-207 Series

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
