566BCA000270BCGR _ Oscillators_Crystals, Oscillators, Resonators

Part Number	566BCA000270BCGR
Manufacturer	Skyworks Solutions, Inc.
Other Part Numbers	863-566BCA000270BCGRTR-ND 863-566BCA000270BCGRTR
Description	DIFFERENTIAL/SINGLE-ENDED; DUAL
Detailed Description	148.351648 MHz VCXO LVDS Oscillator 1.8V, 2.5V, 3.3V Amplitude Control 6-SMD, No Lead
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Crystals, Oscillators, Resonators Oscillators
Manufacturer		Skyworks Solutions, Inc.
Series		Ultra™ Si566
Packaging		Tape & Reel (TR)
Part Status		Active

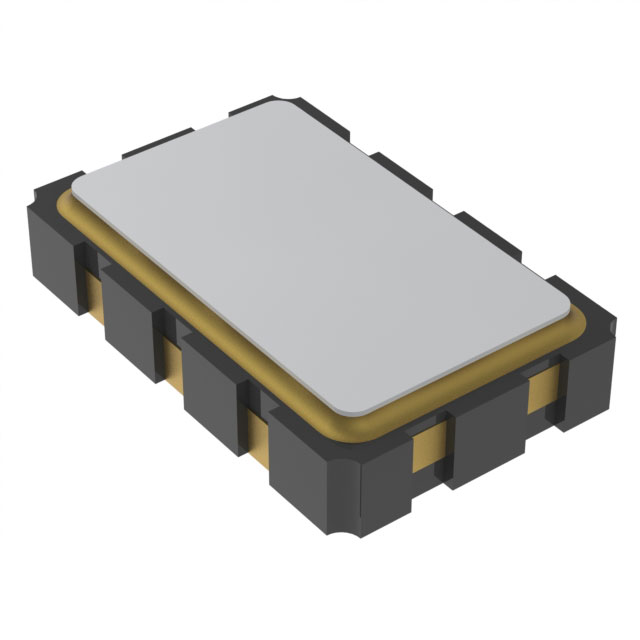

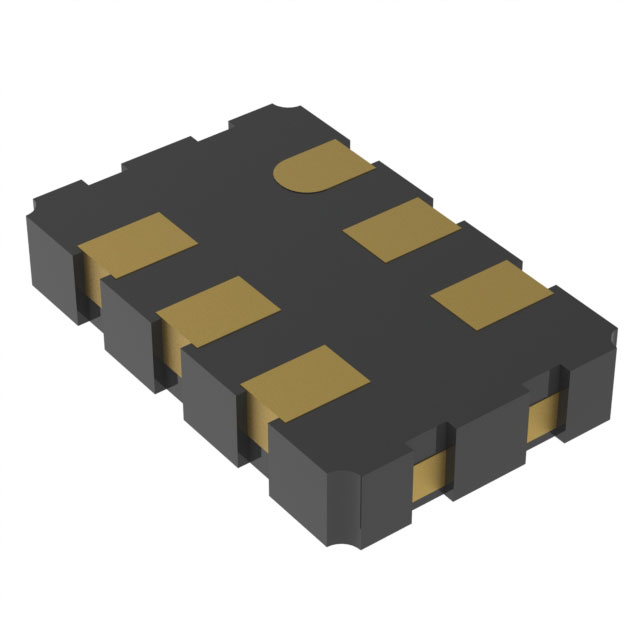

Package / Case		6-SMD, No Lead
Size / Dimension		0.197" L x 0.126" W (5.00mm x 3.20mm)
Mounting Type		Surface Mount
Output		LVDS
Function		Amplitude Control
Type		VCXO
Operating Temperature		-40°C ~ 85°C
Frequency Stability		±20ppm
Voltage - Supply		1.8V, 2.5V, 3.3V
Current - Supply (Max)		140mA
Current - Supply (Disable) (Max)		83mA (Typ)
Height - Seated (Max)		0.052" (1.33mm)
Absolute Pull Range (APR)		±70ppm
Frequency		148.351648 MHz
Base Resonator		Crystal

RESOURCE TYPE		LINK
Datasheets		566BCA000270BCGR

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
