561136

Part Number
561136
Manufacturer nVent
Other Part Numbers
3661-561136-ND
3661-561136

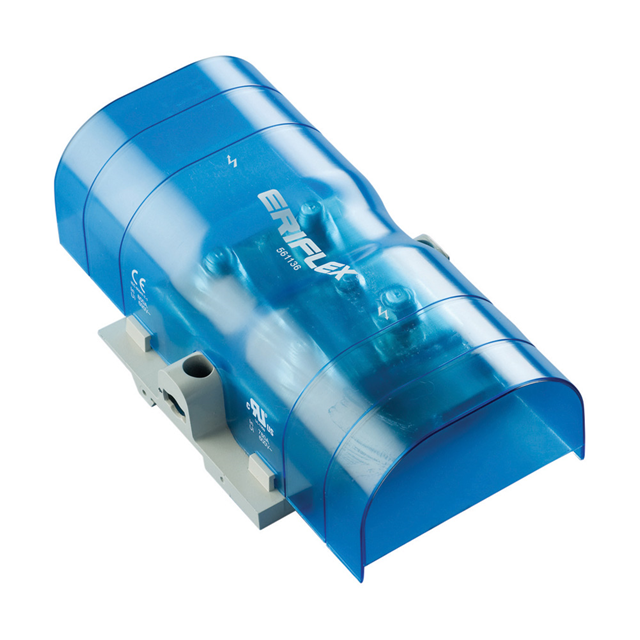

Description POWER TERMINAL 800A
Detailed Description 4 Pole Power Stud Terminal Block 800 A 1000 V
Datasheet Datasheet

Product Attributes

Category
Manufacturer nVent
Series
Packaging
Box
Part Status Active
Type Power Stud Terminal Block
Number of Poles 4
Line Side Connections Per Pole 2
Load Side Connections Per Pole 2
Line Side Connection Type Screw Connection
Load Side Connection Type Screw Connection
Line Side Wire/Stud Size 500MCM (kcmil) - #4CU
Load Side Wire/Stud Size 500MCM (kcmil) - #4CU
Voltage - Rated 1000 V
Current Rating (Amps) 800 A

Documents & Media

RESOURCE TYPE LINK
Datasheets 561136

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8536.90.4000
Moisture Sensitivity Level (MSL) Vendor Undefined
REACH Status REACH info available upon request
RoHS Status Not applicable
