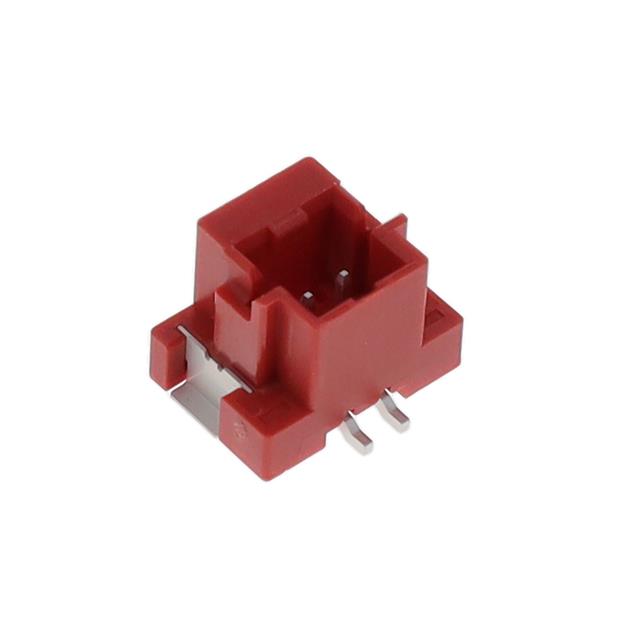

5600200222 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	5600200222
Manufacturer	Molex
Other Part Numbers	900-5600200222TR-ND 900-5600200222CT-ND 900-5600200222DKR-ND 900-5600200222TR 560020-0222 900-5600200222CT 900-5600200222DKR
Description	2.0 W-B SMT ST 2CKT EMBOSSED TP
Detailed Description	Connector Header Surface Mount 2 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Molex
Series		DuraClik 560020
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention
Connector Type		Header
Voltage Rating		125V
Current Rating (Amps)		3A
Mounting Type		Surface Mount
Number of Positions		2
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Red
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Insulation Height		0.315" (8.00mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon

RESOURCE TYPE		LINK
Datasheets		5600200222
Datasheets		Mult Devs Tool Duplication 21/Mar/2022
Datasheets		Mult Devs Packaging 16/Oct/2023
Datasheets		5600200222

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
